RADIAN 951PB - 1.4" PRO HIGH FREQ. DRIVER
|
|
|
RADIAN 951PB - 1.4" PRO HIGH FREQ. DRIVER |
|
LIGHTWEIGHT & POWERFUL 1.4" W/ ULTRA CLEAN HIGH & MID FREQUENCIES OF THE HIGHEST LEVEL AVAILABLE! |
|
|
|

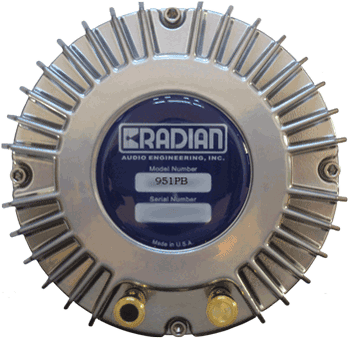

RADIAN 951PB |
|
Radian 951PB-8 - 8 ohm version
Item Price: $449.95 |
|
|
Radian 951PB-16 - 16 ohm version
Item Price: $449.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1.4" |
|
Impedance |
8
or 16 ohms
|
|
AES
Power Rating |
125 Watts above 500Hz |
| Program Power | 250 Watts above 500Hz |
| Sensitivity (1W/1m) | 111dB SPL |
| Frequency Response | 500Hz - 20kHz |
| Recommended Crossover | 500Hz @ 24dB or 900Hz @ 12dB |
| Voice Coil Diameter | 4.0" / 101.6mm |
| Flux Density | 1.9T |
|
Mounting Information |
|
|
Overall Diameter |
5.875" / 149.26mm |
| Overall Depth | 3.25" / 82.55mm less studs |
| Mounting | (4) 1/4-20 studs on 4" dia. centers |
| Net Weight | 10.4 lb. / 4.73 kg. |
|
Materials |
|
| Diaphragm | Pure Aluminum |
| Voice Coil | Edgewound Copper Clad Aluminum |
| Diaphragm Suspension | Mylar |
| Input Connectors | Goldplated Push-Button Terminals |
| Magnet | Neodymium |
|

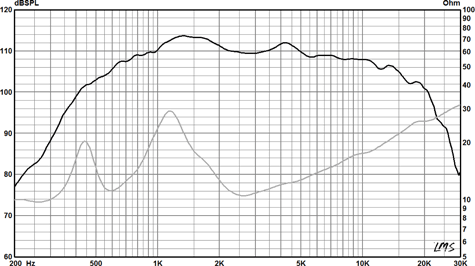

SPL vs. Frequency |
|
|
|
|
|

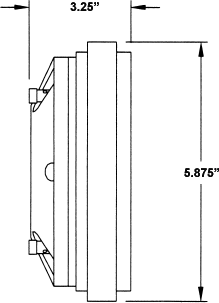

Dimensional Drawing |
|
|
|
|
