RADIAN LM10N - WIDE BAND PLANAR RIBBON DRIVER

THE RADIAN LM10N WIDE BAND PLANAR RIBBON DRIVER HAS A WIDE FREQUENCY RANGE FROM 150HZ TO 20KHZ!

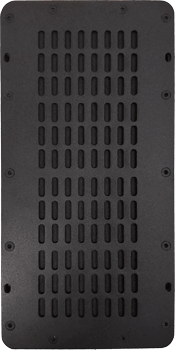

Radian LM10N Wide Band Planar Ribbon

RADIAN LM10N

Radian LM10N

Item Price: $299.95

WIDE BAND PLANAR RIBBON DRIVER MODEL  - LM10N

Specifications

Impedance 8 ohms
D.C. Resistance 6.8 ohms
AES Power Rating 70 Watts above 150Hz
Short Term Power Rating 100 Watts above 500Hz - 5kHz
Long Term Power Rating 200 Watts above 500Hz - 5kHz
Sensitivity (1W/1m) - No Waveguide 94dB SPL
Frequency Response 120Hz - 20kHz
Recommended Crossover 150Hz @ 12dB SPL or 200Hz @ 6dB SPL
Horizontal Coverage 120
Vertical Coverage 30
Displacement Limit For Voice Coil 1.2mm

Mounting Information

Overall Height 10.03" / 254.8mm
Overall Width 4.95" / 125.8mm
Overall Depth (without terminal) .49" / 12.5mm
Net Weight 3.0 lb. / 1.35 kg.

Materials

Diaphragm High Temperature Polymer
Current Carrying Conductors Aluminum Foil
Front Plate Material Powder Coated Steel
Magnet Neodymium

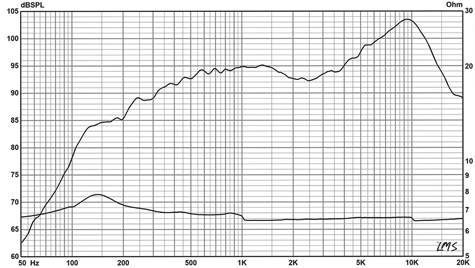

Frequency Response

Radian LM10N Frequency

Dimensional Drawing

Radian LM10N Drawing

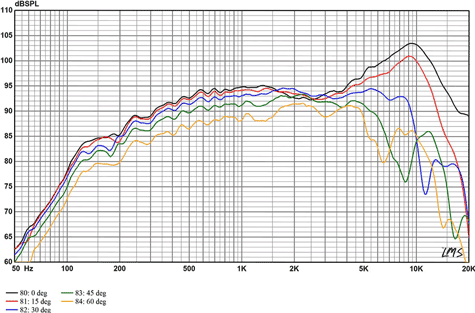

Horizontal Directivity
Radian LM10N Horizontal Directivity

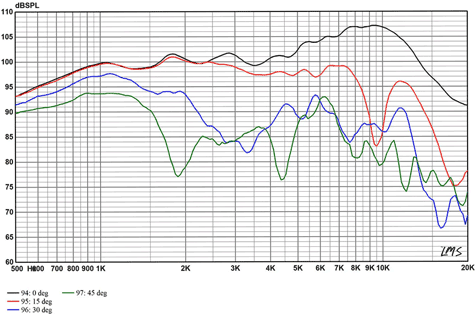

Vertical Directivity

Radian LM10N Vertictal Directivity
