RADIAN LT2.2-WG - EXTENDED RANGE PLANAR RIBBON DRIVER WITH HORN

RADIAN LT2.2-WG PLANAR RIBBON DRIVER WITH HORN DELIVERS A CLEAN ACCURATE SOUND WITH EXTENDED TO 40KHZ!

Radian LT2.2-WGRadian LT2.2-WG

RADIAN LT2.2-WG

Radian LT2.2-WG

Item Price: $69.95

H.F. PLANAR RIBBON DRIVER MODEL  -  LT2.2-WG

Specifications

Impedance 5 ohms
D.C. Resistance 4.1 ohms
AES Power Rating 20 Watts above 1.2kHz
Short Term Power Rating 60 Watts above 1.2kHz
Long Term Power Rating 30 Watts above 1.2kHz
Sensitivity (1W/1m) - No Waveguide 96dB SPL
Sensitivity (1W/1m) - On Waveguide 101dB SPL
Frequency Response 1.2kHz - 40kHz
Recommended Crossover 2kHz @ 12dB or 4kHz @ 6dB
Horizontal Coverage 120
Vertical Coverage 60
Displacement Limit For Voice Coil .5mm

Mounting Information

Overall Height 4.25" / 108mm
Overall Width 4.25" / 108mm
Overall Depth .91" / 23mm
Net Weight .7 lb. / .32 kg.

Materials

Diaphragm Kapton
Current Carrying Conductors Aluminum Foil
Front Plate Material Powder Coated Steel
Magnet Neodymium

Frequency Response

Radian LT2.2WG Frequency

Dimensional Drawing

Radian LT2.2-WG Drawing

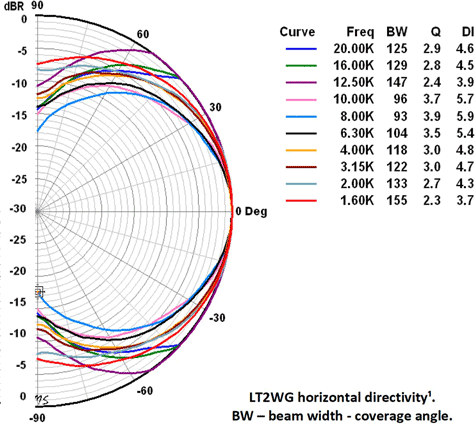

Horizontal Beamwidth
Radian LT2.2-WG Horizontal Beamwidth

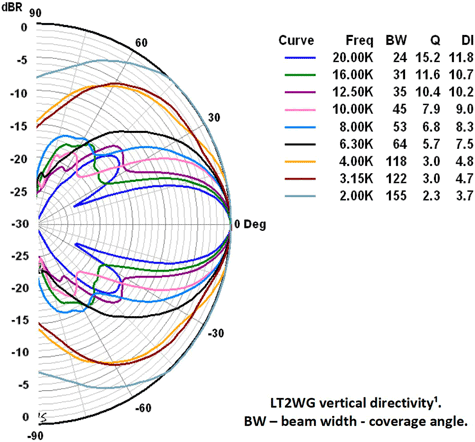

Vertical Beamwidth

Radian LT2.2-WG Vertical Beamwidth
