RADIAN LT3.2-WG - WAVEGUIDE HORN

THE RADIAN LT3.2WG WAVEGUIDE HORN FOR THE LT3.2 DELIVERS A MORE CONTROLLED DISPERSION!!

Radian LT3.2-WG

RADIAN LT3.2-WG

Radian LT3.2-WG

Item Price: $25.95

H.F. PLANAR RIBBON DRIVER MODEL  - LT3.2-WG

Specifications

Sensitivity (1W/1m) - On Waveguide 101dB SPL
Horizontal Coverage 100
Vertical Coverage 60

Mounting Information

Overall Height 6.69" / 170mm
Overall Width 6.69" / 170mm
Overall Depth 2.48" / 63mm
Net Weight .7 lb. / .31 kg.

Materials

Front Plate Material Powder Coated Steel

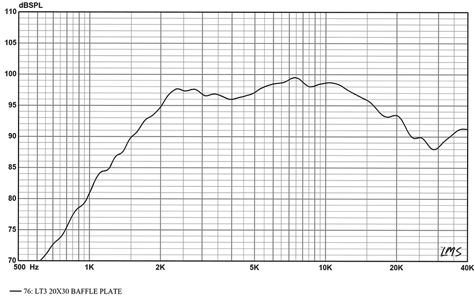

Frequency Response w/ LT3.2

Radian LT3.2 Frequency

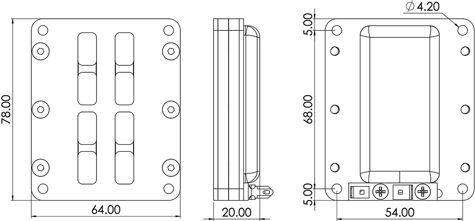

Dimensional Drawing w/ LT3.2

Radian LT3.2 Drawing

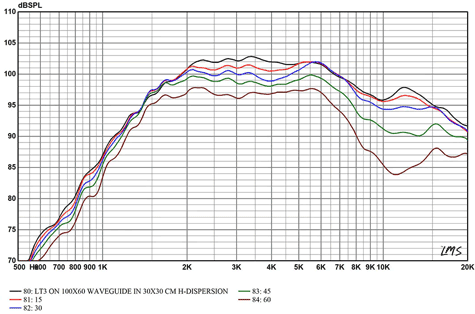

Horizontal Directivity w/ LT3.2
Radian LT3.2 Horizontal Diriectivity

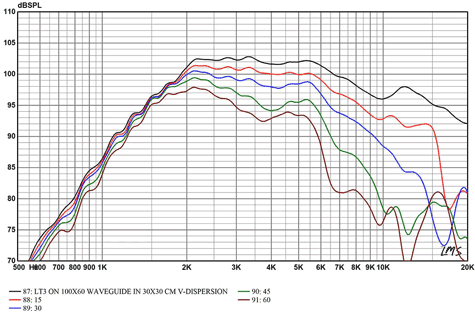

Vertical Directivity w/ LT3.2

Radian LT3.2 Vertictal Diriectivity
