| AS-2K3 - 2 Channel Power Amp Module |
| RAM AUDIO AS-2K3 2 CHANNEL POWER AMP MODULE FOR 2-WAY SPEAKER SYSTEMS | |
|
|
Item Price: $1,415.00 Free UPS Ground Shipping in the U.S. |
|
SPECIFICATIONS |
|
| Number Of Channels | 2 |
| Power Handling - 2 Ohms | 750 Watts/Ch. A / 750 Watts/Ch. B |
| Power Handling - 4 Ohms | 1,500 Watts/Ch. A / 750 Watts/Ch. B |
| Power Handling - 8 Ohms | 1,500 Watts/Ch. A / 400 Watts/Ch. B |
| Frequency Response | 20Hz to 20kHz |
| Total Harmonic Distortion (20Hz - 20kHz) | <0.05% |
| Damping Factor (20Hz-500Hz @ 8ohms) | >400 |
| Voltage Gain (selectable) | 26-38dB |
| Efficiency | <90% |
| Power Factor | <0.95% |
| Operating Voltage (20Hz-500Hz @ 8ohms) | 85V-265V AC/50-60Hz |
| Consum. @4Ω, 1/8 r.p., 230V AC | 1.7 A |
|
DIMENSIONS |
|
| External Plate (Width x Height) | 130mm x 443mm / 5.12" x 17.44" |
| Internal Dimensions (Width x Height x Depth) | 100mm x 423mm x 55mm / 3.93" × 16.65" × 2.17" |
| Net Weight | 1.5 kg. / 3.3 lbs. |
|
PROTECTIONS |
|
| Soft-Start | True 1 In-Out |
| Turn-on Turn-off transients | Overloaded Power Supply |
| Muting at Turn-on | Mismatched Loads |
| Over-heating, DC, RF, Short-circuit | ICL™ & PMS™ |
|
CONNECTIONS |
|
| XLR Input | USB |
| XLR Link | 2x RJ45 |
| Powercon True 1 In/Out | Barrier Strip (In Optional Case) |
|

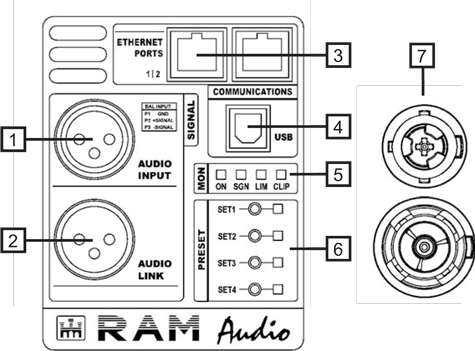

BACK PANEL |
|
|
|
|
|
POWER MODULE PROFILE |
|
|
|
|
|
WIRING |
|
|
|
|
