| EXTREME XTR SERIES - XTR-18K |

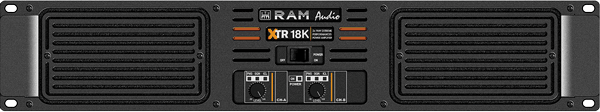

| RAM AUDIO XTR-18K TOURING AMPLIFIER FOR THE MOST DEMANDING SUBWOOFER SYSTEMS | |
|
|
Item Price: $6,995.00 Free UPS Ground Shipping in the U.S. |
|
SPECIFICATIONS |
|
| Number Of Channels | 2 |
| Power Handling - 4 Ohms | 9,000 Watts |
| Power Handling - 8 Ohms | 4,500 Watts |
| Frequency Response | 20Hz to 20kHz |
| Total Harmonic Distortion (20Hz - 20kHz) | <0.05% |
| Intermodulation Distortion (SMPTE) | <0.05% |
| Damping Factor (20Hz-500Hz @8ohm) | >500 |
| Crosstalk (20Hz-1kHz), Typical | >70dB |
| Voltage Gain (selectable) | 32/38/44dB |
| Sensitivity (rated power 32/38/44dB Gain) | 4.7/2.4/1.2V |
| Signal to Noise Ratio (20Hz-20kHz) | 118dB |
| Operating Voltage (50Hz-60Hz) | 170V-265V AC |
| Power On Idling (@230V) | 0.5 A |
| 1/8 Rated Power (@230V/4ohm) | 16A |
|
PROTECTIONS |
|
| Soft-Start | Open or Mismatched Loads |
| Turn-on Turn-off transients | Overloaded Power Supply |
| Muting at Turn-on | Mains Overvoltage |
| Over-heating, DC, RF, Short-circuit | ICL™, PMS™, SSP™ and FCM™ |
|
DIMENSIONS |
|
| Dimensions | 483mm x89mm x460mm - 19" W×3.5" H ×18.1" D |
| Net Weight | 12 kg. / 26.5 lbs. |
