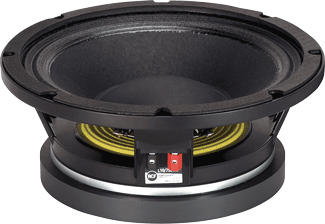

PRO SERIES L10/750YK - 10" MIDRANGE SPEAKER
|
|
|
PRO SERIES L10/750YK - 10" MIDRANGE SPEAKER |
|
THE RCF L10/750YK 10" MIDRANGE SPEAKER HAS VERY LOW DISTORTION & CLEAN LOUD MIDRANGE! |
|
|
|
Item Price: $279.00 |
|
WOOFER
MODEL |
L10/750YK |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
350
Watts |
| Program Power |
700
Watts |
|
Frequency
Response |
70Hz
- 3.0kHz |
|
Sensitivity
(1W/1m) |
100dB |
|
Voice
Coil Diameter |
3" / 76mm |
|
Max. Crossover Frequency |
3.0kHz |
| Max. Excursion Before Damage | 1.6" / 40mm (peak to peak) |
|
MATERIALS |
|
| Cone Material | No Pressed Pulp |
| Cone Design | Curved |
| Voice Coil Material | Copper |
| Surround Material | Polycotton |
| Surround Design | M- Roll |
| Voice Coil Former | Fiberglass |
| Magnet | Ferrite |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
10.6"
/ 260mm |
|
Bolt
Circle Diameter |
9.6" / 244.5mm |
| Front Baffle Cutout Diameter |
9.1"
/ 230mm |
| Rear Baffle Cutout Diameter |
9.0"
/ 229mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.2" / 5.5mm |
| Overall Depth | 4.7" / 120mm |
|
Net
Weight |
7.7 kg. / 16.9 lbs. |
| Shipping Weight | 8.1 kg. / 17.8 lbs. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 68 Hz |
|
Impedance
(Re) |
5.1 ohms |
| Coil Inductance (Le) | 1.3mH |
| BL Factor | 17.5 |
| Mechanical Q (Qms) | 4.2 |
| Electrical Factor (Qes) | .25 |
| Total Q (Qts) | .24 |
| Compliance Equivalent Vol. (Vas) | 26 Liters |
| Voice Coil Overhang (Xmax) | 2.5mm |
| Moving Mass (Mms) | 50 grams |
| Reference Efficiency | 3.15% |

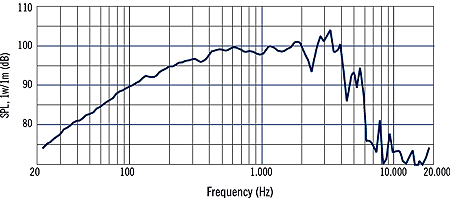

| Frequency Response | |
| 600 Liter/21.2 cu.ft. closed box enclosing rear of driver | |
 |
|

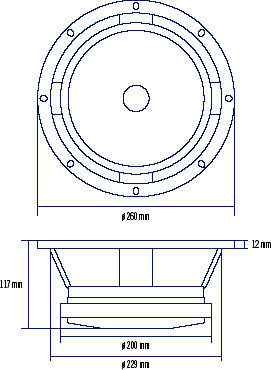

| Dimensional Drawing | |
 |
|
