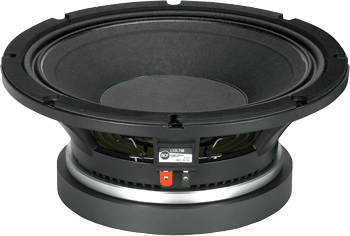

RCF L12L750 - 12" MIDRANGE SPEAKER
|
|
|
RCF L12L750 - 12" MIDRANGE SPEAKER |
|
CLEAN POWERFUL 12" MIDRANGE L12 L750 W/ HIGH 101DB SPL! |
|
|
|
Item Price: $379.95 |
|
WOOFER
MODEL |
L12L750 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
350
Watts |
| Program Power |
700
Watts |
|
Frequency
Response |
60Hz
- 2.0kHz |
|
Sensitivity
(1W/1m) |
101dB |
|
Voice
Coil Diameter |
4" / 100mm |
|
Max. Crossover Frequency |
2.0kHz |
| Max. Excursion Before Damage | 1.6" / 40mm (peak to peak) |
|
MATERIALS |
|
| Cone Material | No Pressed Pulp |
| Cone Design | Curved |
| Voice Coil Material | Aluminum |
| Surround Material | Polycotton |
| Surround Design | Triple Roll |
| Voice Coil Former | Fiberglass |
| Magnet | Ferrite |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.6"
/ 320mm |
|
Bolt
Circle Diameter |
11.81" / 300mm |
| Baffle Cutout Diameter |
11.26"
/ 286mm |
|
No.
Of Mounting Holes |
8 |
| Mounting Hole Diameter | 0.275" / 7mm |
| Flange Thickness | .51" / 13mm |
| Top Plate Thickness | .4" / 10mm |
| Overall Depth | 6.1" / 155mm |
|
Net
Weight |
8.5 kg. / 18.7 lbs. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 62 Hz |
|
Impedance
(Re) |
5.2 ohms |
| Coil Inductance (Le) | 1.25mH |
| BL Factor | 18.8 |
| Mechanical Q (Qms) | 4.1 |
| Electrical Factor (Qes) | .29 |
| Total Q (Qts) | .27 |
| Compliance Equivalent Vol. (Vas) | 52 Liters |
| Voice Coil Overhang (Xmax) | 3.5mm |
| Moving Mass (Mms) | 50 grams |
| Reference Efficiency | 4.12% |

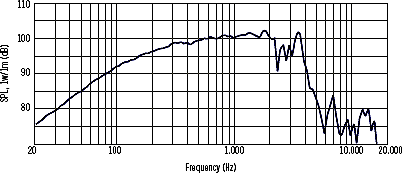

| Frequency Response | |
 |
|

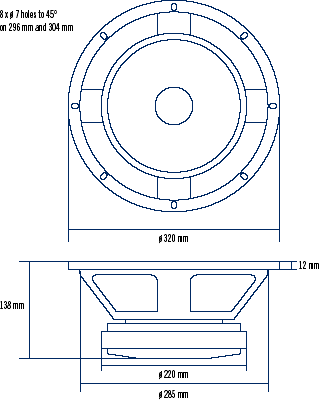

| Dimensional Drawing | |
 |
|
