RCF L15S801 - HIGH POWER 15" WOOFER
|
|
|
RCF L15S801 - HIGH POWER 15" WOOFER |
|
SMOOTH WARM SOUND W/ 700 WATTS AES POWER HANDLING & HIGH EFFICIENCY OF 99.5DB SPL! |
|
|
|
RCF L15S801 |
|
No Longer Available |
|
|
WOOFER
MODEL |
L15S801 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
700
Watts |
| Program Power |
1400
Watts |
|
Frequency
Response |
40Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
99.5dB |
|
Voice
Coil Diameter |
4" / 100mm |
| Voice Coil Winding Depth | .6" / 16mm |
| X Damage (peak to peak) | 48mm/1.9" |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 15.5" / 393mm |
| Bolt Circle Diameter |
14.6-14.8"
/ 371-376mm |
| Baffle Cutout Diameter | 13.9" / 352mm |
|
No.
Of Mounting Holes |
8 |
| Mounting Hole Diameter | 0.3" / 6.5mm |
| Overall Depth | 5.4" / 138mm |
| Net Weight | 12 kg. / 26.4 lbs. |
| Shipping Weight | 12.5 kg. / 27.5 lbs. |
|
MATERIALS |
|
| Cone | No Pressed Pulp |
| Cone Design | Curved |
| Voice Coil | Copper |
| Surround | Polycotton |
| Surround Design | M-Roll |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 48 Hz |
| Impedance (Re) | 6.1 ohms |
| Coil Inductance (Le) | 1.7mH |
| Mechanical Q (Qms) | 11 |
| Electrical Factor (Qes) | .33 |
| Total Q (Qts) | .32 |
| Compliance Equivalent Vol. (Vas) | 113 Liters/3.99cu. ft. |
| Voice Coil Overhang (Xmax) | 5.5mm |
| BL Factor (BL) | 23.6 T-M |
| Surface Area of Cone (Sd)m2 | 0.085m2 |
| Reference Efficiency | 3.65% |
|
CABINET SPECIFICATIONS |
|
| Enclosure Volume | 80Liters/3.14cu. ft. |
| Tuning Frequency | 55Hz |
| Vent Diameter | 190mm/7.48" |
| Vent Depth | 215mm/8.46" |

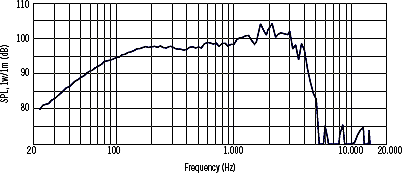

| LOW FREQUENCY RESPONSE | |
 |
|
