RCF LF12G300 - HIGH POWER 12" WOOFER
|
|
|
RCF LF12G300 - HIGH POWER 12" WOOFER |
|
WARM TRANSPARENT BASS AND MIDS WITH LOW DISTORTION! |
|
|
LF12G300
|
Sold Out Item Price: $249.95 Blowout Sale Price $199.95 - Only While Supplies Last |
|
WOOFER
MODEL |
LF12G300 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
450
Watts |
| Program Power |
900
Watts |
|
Frequency
Response |
40Hz
- 2.0kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
3"
/ 76mm |
| X Damage (peak to peak) | 36mm/1.4" |
|
MATERIALS |
|
| Cone | No Pressed Pulp |
| Voice Coil Material | Inside/Outside Copper |
| Voice Coil Former | Kapton |
| Diaphragm Material | Paper |
| Surround Material | M-Roll |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.6" / 320mm |
| Bolt Circle Diameter | 11.57-11.97" / 294-304mm |
|
Baffle
Cutout Diameter |
11.1" / 282mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.26" / 6.5mm |
| Overall Depth | 5.4" / 138mm |
| Net Weight | 7.3 kg. / 16.5 lbs. |
| Shipping Weight | 8.1 kg. / 18.0lbs. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 43 Hz |
|
Impedance
(Re) |
5.8 ohms |
| Coil Inductance (Le) | 1.8mH |
| Mechanical Q (Qms) | 4.6 |
| Electrical Factor(Qes) | .23 |
| Total Q (Qts) | .22 |
| BL Factor (BL) | 19 T-M |
| Moving Mass ( Mms) | 56 Grams |
| Compliance Equivalent Vol. (Vas) | 97 Liters/3.43cu. ft. |
| Voice Coil Overhang (Xmax) | 6.8mm |
| Reference Efficiency | 3.23% |

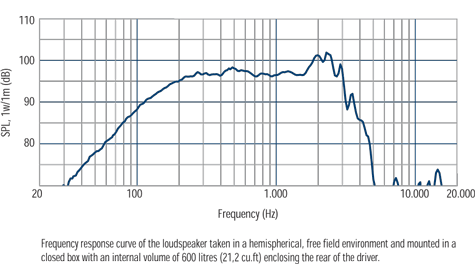

| FREQUENCY RESPONSE CURVE | |
 |
|

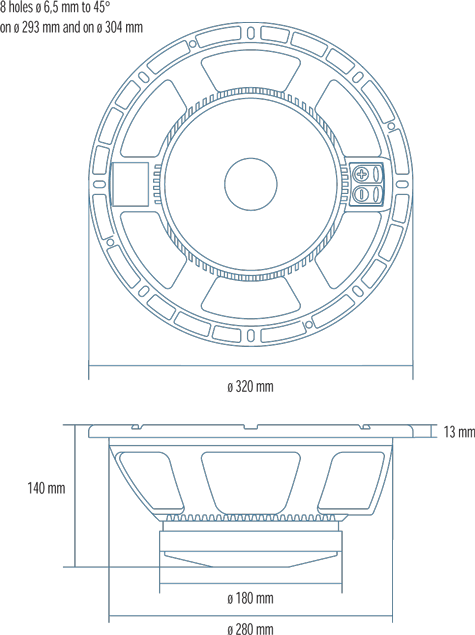

| MOUNTING DIMENSIONS | |
 |
|
