LF15X401 - EXTREME HIGH POWER 15" SUBWOOFER
|
|
|
LF15X401 - EXTREME HIGH POWER 15" SUBWOOFER |
|
THE RCF LF15X401 HAS EXTREMELY LOW HARMONIC DISTORTION THANKS TO IT'S ALUMINUM DEMODULATION RINGS & THICK TOP PLATE ! |
|
|
|
LF15X401 |
|
Item Price: $479.00 |
|
|
WOOFER
MODEL |
LF15X401 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,500 Watts |
| Program Power |
3,000
Watts |
|
Frequency
Response |
30Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
96.5dB |
|
Voice
Coil Diameter |
4" / 100mm |
| Max. Excursion Before Damage | 2.1" / 50mm |
| Voice Coil Winding Depth | 1.18" / 30mm |
| Number Of Layers | 2 |
|
MATERIALS |
|
| Voice Coil Material | Copper |
| Cone Material | No Pressed Pulp |
| Cone Design | Straight |
| Surround Material | Polycotton |
| Surround Design | Triple Roll |
|

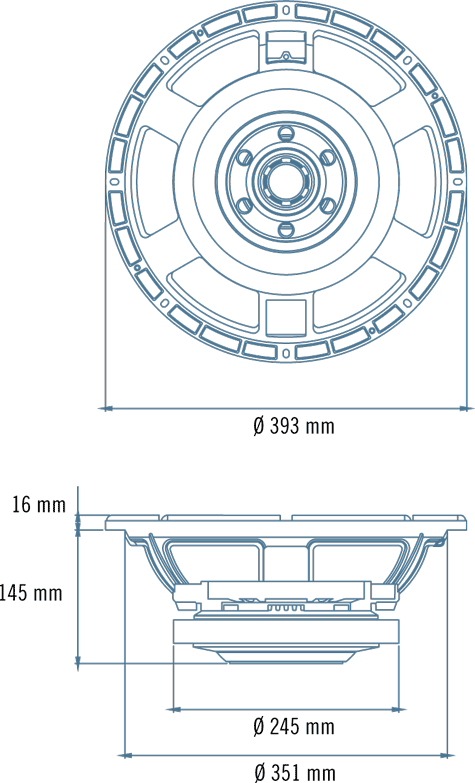

MOUNTING INFORMATION |
|
|
Overall Diameter |
15.5" / 393mm |
| Bolt Circle Diameter | 14.6"-14.8"" / 371-376mm |
| Baffle Cutout Diameter | 13.9" / 354mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.3" / 6.5mm |
| Overall Depth | 5.7" / 145mm |
| Flange Thickness | .6" / 15mm |
| Volume Displaced By Driver | 4.3 Liters / .15ft^3 |
| Net Weight | 12.6 kg. / 27.7 lbs. |
| Shipping Weight | 13.6 kg. / 29.9 lbs. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 34 Hz |
| Impedance (Re) | 5.5 ohms |
| Coil Inductance (Le) | 2.5mH |
| Electromagnetic Q (Qes) | .3 |
| Mechanical Q (Qms) | 7.6 |
| Total Q (Qts) | .29 |
| Compliance Equivalent Vol. (Vas) | 146 Liters/5.16cu. ft. |
| Voice Coil Overhang (Xmax) | 11.5mm |
| BL Factor | 26.5T-M |
| Effective Moving Mass (Mms) | 146 grams |
| Surface Area of Cone(Sd) | .091 m2 |
| Reference Efficiency | 1.9% |
|

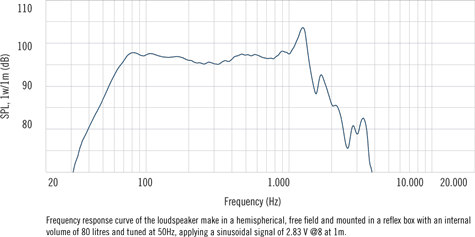

FREQUENCY RESPONSE |
|
|
|
|
|
MOUNTING INFORMATION |
|
 |
|
|
MOUNTING INFORMATION |
|
|
|
|
