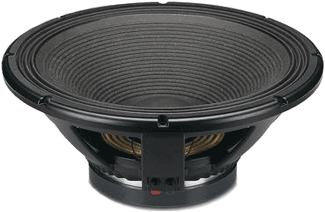

LF18X400 - EXTREME HIGH POWER 18" WOOFER
|
|
|
LF18X400 - EXTREME HIGH POWER 18" WOOFER |
|
HANDLES EXTREME POWER OF 2,000 WATTS, GOES DOWN TO 25HZ & HAS A HIGH 9.0MM XMAX! |
|
|
|
NEW LF18X400 |
|
Item Price: $498.95 |
|
|
WOOFER
MODEL |
LF18X400 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,000 Watts |
| Program Power |
2,000
Watts |
|
Frequency
Response |
25Hz
- 1.0kHz |
|
Sensitivity
(1W/1m) |
97.5dB |
|
Voice
Coil Diameter |
4" / 100mm |
| Max. Excursion Before Damage | 2" / 50mm |
| Voice Coil Winding Depth | .9" / 23mm |
| Number Of Layers | 2 |
|
MATERIALS |
|
| Voice Coil Material | Copper |
| Cone Material | No Pressed Pulp |
| Cone Design | Straight |
| Surround Material | Polycotton |
| Surround Design | Triple Roll |
|
MOUNTING INFORMATION |
|
|
Overall Diameter |
18.3" / 465mm |
| Bolt Circle Diameter | 17.4" / 442mm |
| Baffle Cutout Diameter | 16.7" / 424mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.3" / 6.5mm |
| Overall Depth | 8.3" / 210mm |
| Flange Thickness | .55" / 14mm |
| Volume Displaced By Driver | 7 Liters / .25ft^3 |
| Net Weight | 13.3 kg. / 29.3 lbs. |
| Shipping Weight | 14.3 kg. / 31.5 lbs. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 28 Hz |
| Impedance (Re) | 5.1 ohms |
| Coil Inductance (Le) | 2.3mH |
| Electromagnetic Q (Qes) | .29 |
| Mechanical Q (Qms) | 4.6 |
| Total Q (Qts) | .27 |
| Compliance Equivalent Vol. (Vas) | 360 Liters/12.7cu. ft. |
| Voice Coil Overhang (Xmax) | 9.0mm |
| BL Factor | 24.2T-M |
| Effective Moving Mass (Mms) | 190 grams |
| Surface Area of Cone(Sd) | .122 m2 |
| Reference Efficiency | 2.63% |
|
FREQUENCY RESPONSE |
|
|
|
|
|
MOUNTING INFORMATION |
|
|
|
|
