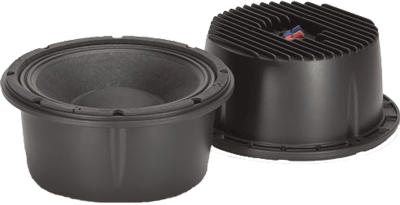

RCF MR10N301 - 10" CLOSED BACK MIDRANGE SPEAKER
|
|
|
RCF MR10N301 - 10" CLOSED BACK MIDRANGE SPEAKER |
|
10" CLOSED BACK MIDRANGE SPEAKER FOR SYSTEMS THAT REQUIRE HIGH SPL & CLEAN MIDS! |
|
|
|
Item Price: $559.00 |
|
WOOFER
MODEL |
MR10N301 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
300
Watts |
| Program Power |
600
Watts |
|
Frequency
Response |
150Hz
- 2.0kHz |
|
Sensitivity
(1W/1m) |
102dB |
|
Voice
Coil Diameter |
3" / 76mm |
|
Max. Crossover Frequency |
2.0kHz |
| Max. Excursion Before Damage | .8" / 20mm (peak to peak) |
|
MATERIALS |
|
| Cone Material | No Pressed Pulp |
| Cone Design | Curved |
| Voice Coil Material | Aluminum |
| Surround Material | Polycotton |
| Surround Design | M- Roll |
| Voice Coil Former | Fiberglass |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
10.7"
/ 272mm |
|
Bolt
Circle Diameter |
9.6" / 244mm |
| Front Baffle Cutout Diameter |
9.3"
/ 235mm |
| Rear Baffle Cutout Diameter |
9.1"
/ 232mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.3" / 7mm |
| Overall Depth | 4.9" / 124mm |
|
Net
Weight |
3.9 kg. / 8.6 lbs. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 250 Hz |
|
Impedance
(Re) |
6.2 ohms |
| Coil Inductance (Le) | 1.17mH |
| BL Factor | 20.7 |
| Mechanical Q (Qms) | 6.48 |
| Electrical Factor (Qes) | .72 |
| Total Q (Qts) | .65 |
| Compliance Equivalent Vol. (Vas) | 2.2 Liters |
| Voice Coil Overhang (Xmax) | 1.4mm |
| Surface Area of Cone (Sd) | .035m2 |
| Moving Mass (Mms) | 31.8 grams |
| Reference Efficiency | 9.26% |
| Frequency Response | |
 |
|

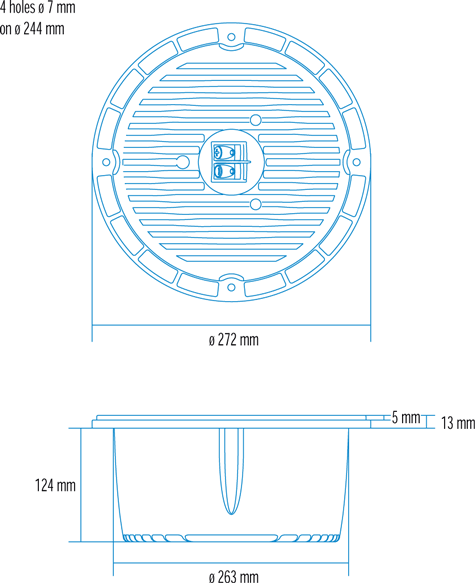

| Dimensional Drawing | |
 |
|
