RCF CX12N351 - HIGH QUALITY 12" COAXIAL SPEAKER
|
|
|
RCF CX12N351 - HIGH QUALITY 12" COAXIAL SPEAKER |
|
THE RCF CX12N351 COAXIAL SPEAKER HAS WARM HIGHS, SMOOTH DETAILED MIDS AND TIGHT LOWS WITH VERY LOW DISTORTION! |
|
|
|
Item Price: $762.95 |
|
WOOFER
MODEL |
CX12N351 |
|
LOW FREQUENCY SPECIFICATIONS |
|
| Nominal Basket Diameter | 12" / 300mm |
| Impedance | 8 ohms |
| AES Power Rating | 450 Watts |
| Program Power | 900 Watts |
| Frequency Response | 50Hz - 3.0kHz |
| Sensitivity (1W/1m) | 98.5dB |
| Voice Coil Diameter | 3.4" / 87mm |
|
LOW FREQUENCY MATERIALS |
|
| Voice Coil | Copper |
| Number of Layers | 2 |
| Kind Of Layers | Inside/Outside |
| Voice Coil Winding Depth | .65"/16.5 |
| Max Excursion Before Damage (Peak To Peak) | 1.5"/39mm |
| Top Plate Thickness | .43"/11mm |
| Cone | No Pressed Pulp |
| Cone Design | Curved |
| Surround | Polycotton |
| Surround Design | M-Roll |
| Magnet | Neodymium |
|
HIGH FREQUENCY SPECIFICATIONS |
|
|
Throat Diameter |
1.4" / 35.5mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
90 Watts |
| Program Power | 180 Watts |
|
Frequency Response |
700Hz - 20kHz |
| Cutoff Frequency | 900Hz |
|
Sensitivity (1W/1m) |
110dB |
| Dispersion | 60° Conical |
|
Voice Coil Diameter |
2.5" / 63.7mm |
|
HIGH FREQUENCY MATERIALS |
|
| Voice Coil | Edgewound Aluminum |
|
Diaphragm |
Pure Titanium |
| Diaphragm Design | Dome Shaped |
| Phase Plug | Aluminum |
| Phase Plug Design | 3 Slot |
| Voice Coil Demodulation | Copper Ring |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall Diameter |
12.6" / 320mm |
| Bolt Circle Diameter | 11.5" to 12" / 293 to 304mm |
| Baffle Cutout Diameter | 11.2" / 284mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.3" / 6.5mm |
| Flange Thickness | .43" / 11mm |
| Overall Depth | 5.66" / 144mm |
| Volume Displaced By Driver | 2.2 Liters / .87ft^3 |
| Net Weight | 5.9 kg. / 13 lbs. |
| Shipping Weight | 6.7 kg. / 14.7 lbs. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 58 Hz |
| Impedance (Re) | 5.8 ohms |
| Coil Inductance (Le) | 1.5mH |
| Electromagnetic Q (Qes) | .21 |
| Mechanical Q (Qms) | 5.4 |
| Total Q (Qts) | .20 |
| Moving Mass (Mms) | 62 Grams |
| BL Factor | 25T-M |
| Compliance Equivalent Vol. (Vas) | 47 Liters/1.66cu. ft. |
| Voice Coil Overhang (Xmax) | 5.5mm |
| Surface Area of Cone (Sd)m2 | 0.053m2 |
| Reference Efficiency | 4.4% |

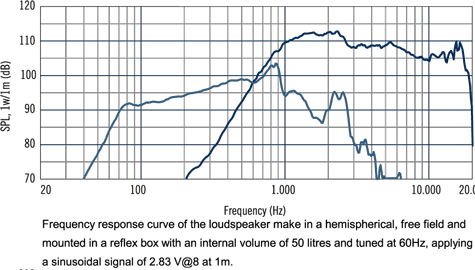

| FREQUENCY RESPONSE | |
 |
|
| DIMENSIONAL DRAWING | |
 |
|
