RCF
PROFESSIONAL COMPONENTS

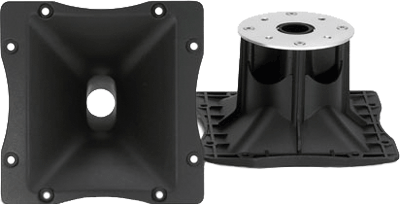

HF101 - 1" 90°x 70° HORN
|
|
|
HF101 - 1" 90°x 70° HORN |
THE RCF HF101 1" HORN IS OPTIMIZED FOR SOUND REINFORCEMENT SYSTEMS OF HIGH QUALITY
STRONG CAST ALUMINUM FRAME WITH EXTENSIVE BRACING TO REDUCE ANY RESONANCE
90°x 70° CONSTANT DIRECTIVITY COVERAGE FOR A PERFECTLY CONTROLLED PATTERN
DESIGNED TO WORK WELL FROM 1KHZ OR HIGHER
|
1" HORN THAT HAS A PERFECTLY CONTROLLED 90°x 70° PATTERN THAT WORKS WELL IN 2-WAY CABINETS INCLUDING STAGE MONITORS! |
|
|
|
Item Price: $101.00 |
|
HORN MODEL |
RCF - HF101 |
|
SPECIFICATIONS |
|
|
Type |
Constant Directivity |
|
Throat Size |
1" / 25.4mm |
|
Dispersion |
90°x 70° |
|
Lowest Rec. Crossover |
1kHz |
|
M |
Aluminum |
| Net Weight |
1.54
lbs. / .7kg |
| Shipping Weight |
1.98 lbs. / .9kg |
|
MOUNTING INFORMATION |
|
| Overall Width | 7.09" / 180mm |
|
Overall Height |
7.09" / 180mm |
| Overall Depth | 3.54" / 90mm |
| Cutout Width | 5.91" / 150mm |
| Cutout Height | 5.91" / 150mm |
|
FREQUENCY RESPONSE |
|
|
Frequency response curve of the horn measured on axis at distance of 1 meter with1 watt signal, in an anechoic environment, with ND1411-M compression driver. |
|
|
|
|
|

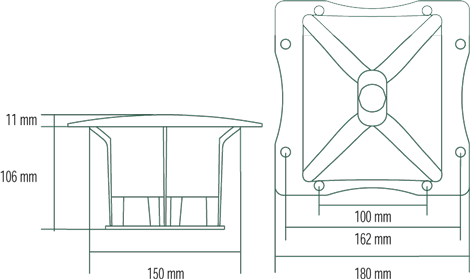

DIMENSIONS |
|
|
|
|
