HF64 - 1" 60°x 40° HORN
|
|
|
HF64 - 1" 60°x 40° HORN |
THE RCF HF64 A 1" / 1.4" CONSTANT DIRECTIVITY 60°x 40° HORN
COMES ASSEMBLED AS A 1.4" HORN BUT HAS A REMOVABLE ADAPTOR TO MAKE IT A 1" HORN
IS OPTIMIZED FOR SOUND REINFORCEMENT SYSTEMS OF HIGH QUALITY
THICK CAST ALUMINUM FRAME WITH EXTENSIVE BRACING TO REDUCE ANY RESONANCE
60°x 40° CONSTANT DIRECTIVITY COVERAGE FOR A PERFECTLY CONTROLLED PATTERN
DESIGNED TO WORK WELL FROM 500HZ OR HIGHER
|
THE RCF HF64 IS A 1" & 1.4" CONTANT DIRECTIVITY HORN THAT HAS A PERFECTLY CONTROLLED 60°x 40° PATTERN THAT WORKS FROM 500HZ OR HIGHER! |
|
|
|
Item Price: $169.00 |
|
HORN MODEL |
RCF - HF64 |
|
SPECIFICATIONS |
|
|
Type |
Constant Directivity |
|
Throat Size |
1"-1.4" / 25.4-35.6mm |
|
Dispersion |
60°x 40° |
|
Lowest Rec. Crossover |
500Hz |
|
M |
Cast Aluminum |
| Net Weight |
3.96
lbs. / 1.8kg |
| Shipping Weight |
4.4 lbs. /
2.0kg |
|
MOUNTING INFORMATION |
|
| Overall Width | 9.84" / 250mm |
|
Overall Height |
9.84" / 250mm |
| Overall Depth | 7.08" / 180mm |
| Cutout Width | 8.07" / 205mm |
| Cutout Height | 8.07" / 205mm |
| Mounting | 4 x 6.5mm |
|

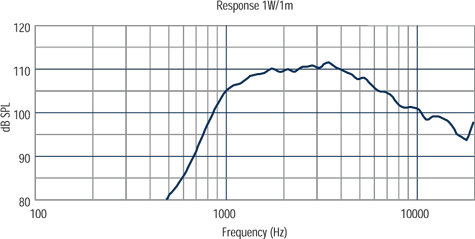

FREQUENCY RESPONSE |
|
|
Frequency response curve of the horn measured on axis at distance of 1 meter with1 watt signal, in an anechoic environment, with ND2530-T3 compression driver. |
|
|
|
|
|

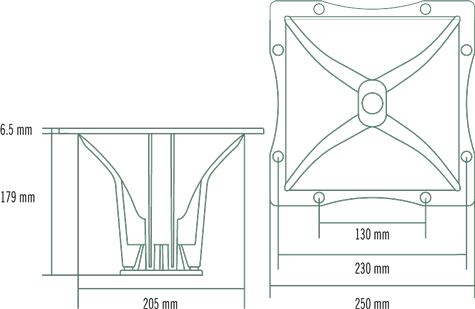

DIMENSIONS |
|
|
|
|
