RCF
PROFESSIONAL COMPONENTS
HF66 - 1" 60°x 60° HORN
|
|
|
HF66 - 1" 60°x 60° HORN |

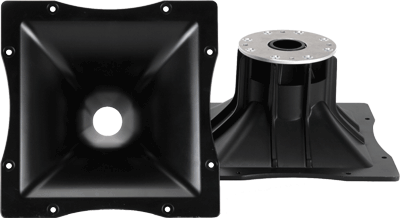

THE RCF HF66 A 1.4" CONSTANT DIRECTIVITY 60°x 60° HORN
OPTIMIZED FOR SYSTEMS THAT REQUIRE A TIGHT CONTROLLED HIGH FREQUENCY COVERAGE PATTERN
THICK CAST ALUMINUM FRAME WITH EXTENSIVE BRACING TO REDUCE ANY RESONANCE
60°x 60° CONSTANT DIRECTIVITY COVERAGE FOR A PERFECTLY CONTROLLED PATTERN
DESIGNED TO WORK WELL FROM 500HZ OR HIGHER
|
THE RCF HF66 IS A 1" CONTANT DIRECTIVITY HORN THAT HAS A PERFECTLY TIGHT CONTROLLED 60°x 60° PATTERN THAT WORKS FROM 500HZ OR HIGHER! |
|
|
|
No Longer Available |
|
HORN MODEL |
RCF - HF66 |
|
SPECIFICATIONS |
|
|
Type |
Constant Directivity |
|
Throat Size |
1.4" / 35.6mm |
|
Dispersion |
60°x 60° |
|
Lowest Rec. Crossover |
500Hz |
|
M |
Cast Aluminum |
| Net Weight |
3.96
lbs. / 1.8kg |
| Shipping Weight |
4.4 lbs. /
2.0kg |
|
MOUNTING INFORMATION |
|
| Overall Width | 9.84" / 250mm |
|
Overall Height |
9.84" / 250mm |
| Overall Depth | 5.11" / 130mm |
| Cutout Width | 7.87" / 20mm |
| Cutout Height | 7.87" / 200mm |
| Mounting | 4 x 6.5mm |
|

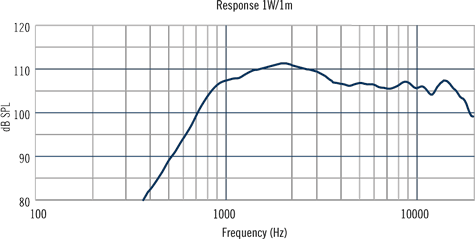

FREQUENCY RESPONSE |
|
|
|
|
|

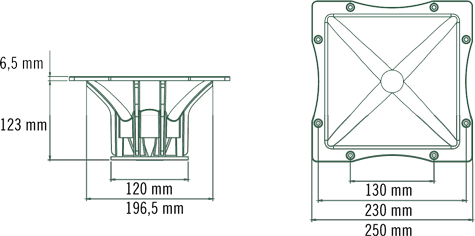

DIMENSIONS |
|
|
|
|
