HF950 - 1" / 1.4" 90°x 50° HORN
|
|
|
HF950 - 1" / 1.4" 90°x 50° HORN |

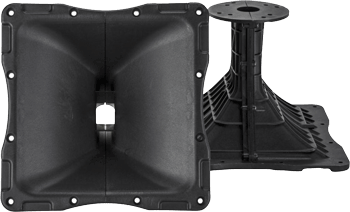

THE RCF HF950 A 1" / 1.4" THROAT ADAPTOR CONSTANT DIRECTIVITY 90°x 50° HORN
OPTIMIZED FOR SYSTEMS THAT REQUIRE A TIGHT CONTROLLED HIGH FREQUENCY COVERAGE PATTERN
STRONG POLYURETHANE WITH EXTENSIVE BRACING TO REDUCE ANY RESONANCE
90°x 50° CONSTANT DIRECTIVITY COVERAGE FOR A PERFECTLY CONTROLLED PATTERN
DESIGNED TO WORK WELL FROM 400HZ OR HIGHER
|
RCF HF950 1" / 1.4" CONTANT DIRECTIVITY HORN HAS A CONTROLLED 90°x 50° PATTERN THAT WORKS FROM 400HZ OR UP! |
|
|
|
Item Price: $136.95 |
|
HORN MODEL |
RCF - HF950 |
|
SPECIFICATIONS |
|
|
Type |
Constant Directivity |
|
Throat Size |
1"/1.4" - 25mm/35.6mm |
|
Dispersion |
90°x 50° |
|
Lowest Rec. Crossover |
400Hz |
|
M |
Polyuerthane |
| Net Weight |
2.58
lbs. / 1.17kg |
| Shipping Weight |
4.63
lbs. /
2.21kg |
|
MOUNTING INFORMATION |
|
| Overall Width | 11.81" / 300mm |
|
Overall Height |
11.81" / 300mm |
| Overall Depth | 8.19" / 208mm |
| Cutout Width | 10.24" / 260mm |
| Cutout Height | 10.24" / 260mm |
| Mounting | 4 x 7mm |
|

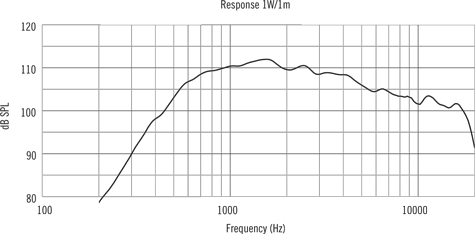

FREQUENCY RESPONSE |
|
|
|
|
|

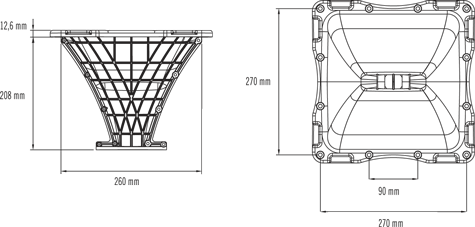

DIMENSIONS |
|
|
|
|

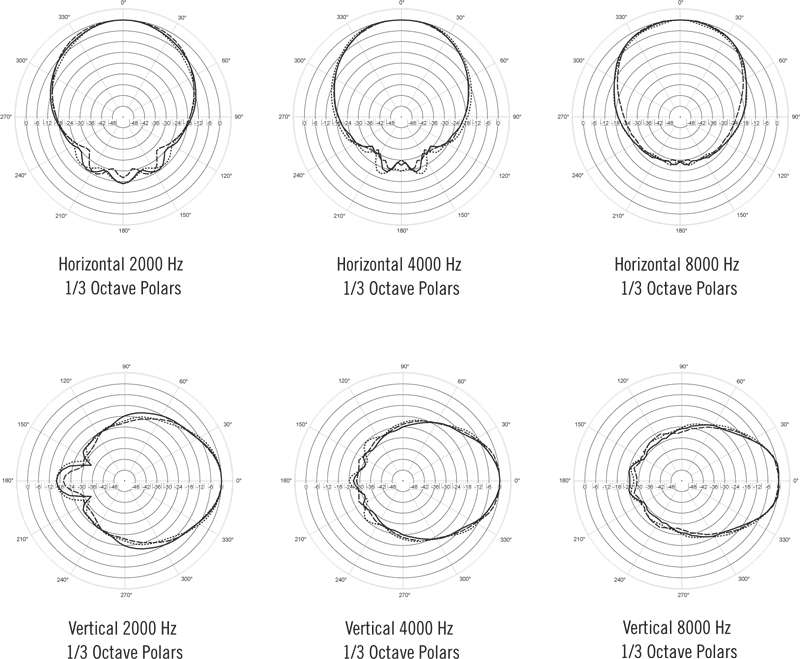

| POLAR RESPONSE | |
|
|
|
