RCF N350 - 1" HIGH FREQUENCY DRIVER |
|
|
|
RCF N350 - 1" HIGH FREQUENCY DRIVER |
|
THE RCF N350 1" HF DRIVER DELIVERS VERY SMOOTH SOUND THANKS TO ITS' MYLAR DIAPHRAGM & MYLAR SURROUND! |
|
|
|
Item Price: $148.95 |
|
H.F.
DRIVER MODEL |
N350 |
|
SPECIFICATIONS |
|
|
Horn
Throat Exit Diameter |
1"
/ 25.4mm |
|
Impedance |
8
Ohms |
|
Frequency
Response |
1.5kHz
- 20kHz |
|
AES Power |
40
Watts |
| Program Power | 80 Watts Program @ 1.5kHz |
|
Minimum
Cut-off Frequency |
1.5kHz |
|
Sensitivity
(SPL) |
107dB |
|
Voice
Coil Diameter |
1.75"
/ 44.4mm |
|
Flux Density |
1.4 Tesla |
| BL Factor | 5.9 T-M |
| Phase Plug | 2 Slot |
|
MATERIALS |
|
|
Diaphragm |
Mylar |
|
Voice
Coil Former |
Kapton |
| Voice Coil | Edgewound Aluminum |
| Suspension | Mylar |
| Suspension Design | Radial |
|
Phase Plug |
Composite |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
4" / 102 mm |
| Hole Pattern | 2 - 3 |
|
Overall
Depth |
2.75" / 70mm |
| Mounting Type | 2 or 3 Bolt On |
| Mounting Type - 2 Bolt | 2 x 6 mm on a 3" Diameter |
| Mounting Type - 3 Bolt | 3 x 6 mm on a 2.25" Diameter |
| Net Weight | 1.4 kg. / 3.1 lbs. |
| Shipping Weight | 1.7 kg. / 3.7 lbs. |

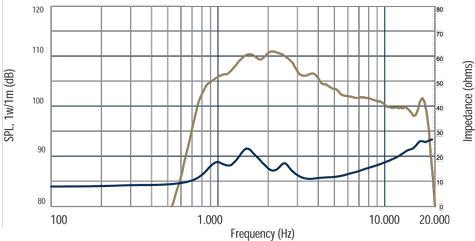

| FREQUENCY RESPONSE CURVE | |
 |
|
