RCF N850 - 2" HIGH FREQUENCY DRIVER |
|
|
|
RCF N850 - 2" HIGH FREQUENCY DRIVER |
|
THE RCF N850 2" DRIVER HAS INCREDIBLY DETAILED HIGHS & MIDS! |
|
|
|
|
|
|
|
|
Replacement diaphragm: N-850-dia
|
|
|
H.F.
DRIVER MODEL |
N850 |
|
Specifications |
|
|
Horn
Throat Exit Diameter |
2"
/ 50.8mm |
|
Impedance |
8
Ohms |
|
Frequency
Response |
500
Hz
- 20kHz |
|
AES Power |
90
Watts |
| Program Power | 180 Watts Program @ 1.2kHz |
|
Minimum
Cut-off Frequency |
800
Hz |
|
Sensitivity
(SPL) |
109dB |
|
Voice
Coil Diameter |
2.93"
/ 74.4mm |
|
Voice
Coil Former |
Kapton |
|
Diaphragm
Material |
Titanium |
| Voice Coil Material | Aluminum Flat Wire |
|
Flux Density |
1.6 Tesla |
|
Net
Weight |
4.7
kg. / 10.34 lbs. |
|
Mounting Information |
|
|
Overall
Diameter |
7.08" / 180 mm |
| Hole Pattern | 4 |
| 2 Holes Equally Spaced On Diameter | 4"/ 101.5 mm |
|
Overall
Depth |
3.75" / 95mm |
| Mounting Type | Bolt On |

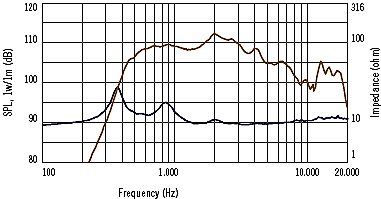

| FREQUENCY RESPONSE CURVE | |
 |
|
