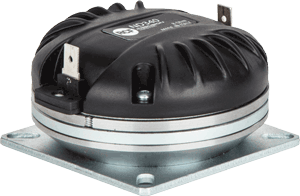

RCF ND340 - 1" HIGH FREQUENCY DRIVER |
|
|
|
RCF ND340 - 1" HIGH FREQUENCY DRIVER |
|
THE RCF ND340 1" HF DRIVER DELIVERS VERY SMOOTH SOUND THANKS TO ITS' MYLAR DIAPHRAGM & MYLAR SURROUND! |
|
|
|
Item Price: $199.95 |
|
H.F.
DRIVER MODEL |
ND340 |
|
SPECIFICATIONS |
|
|
Horn
Throat Exit Diameter |
1"
/ 25.4mm |
|
Impedance |
8
Ohms |
|
Frequency
Response |
1.2kHz
- 20kHz |
|
AES Power |
50
Watts |
| Program Power | 100 Watts Program @ 1.2kHz |
|
Minimum
Cut-off Frequency |
1.2kHz |
|
Sensitivity
(SPL) |
109dB |
|
Voice
Coil Diameter |
1.75"
/ 44.4mm |
|
Flux Density |
1.9 Tesla |
| BL Factor | 7.9 T-M |
|
MATERIALS |
|
|
Diaphragm |
Polyimide |
|
Voice
Coil Former |
Kapton |
| Voice Coil | Edgewound Aluminum |
| Suspension | Polyimide |
| Suspension Design | Flat |
|
Phase Plug Material |
PP Composite |
| Phase Plug | 2 Slot |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Magnet Diameter |
2.99" / 76 mm |
|
Overall
Depth |
1.56" / 39.6mm |
| Flange Thickness | .12" / 3mm |
| Mounting Flange Type | 4 x 5 mm threaded holes on 90° |
| Net Weight | .63 kg. / 1.39 lbs. |
| Shipping Weight | .81 kg. / 1.79 lbs. |

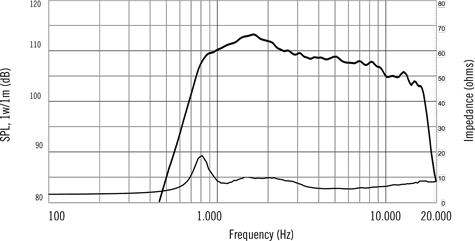

| FREQUENCY RESPONSE CURVE | |
 |
|

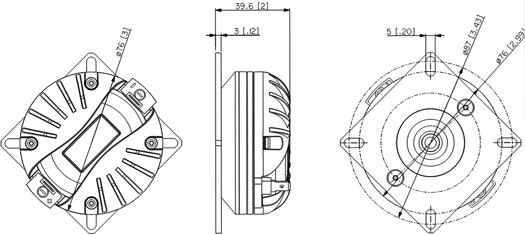

| MOUNTING DIMENSIONS | |
 |
|
