RCF ND350 - 1" HIGH FREQUENCY NEODYMIUM DRIVER |
|
|
|
RCF ND350 - 1" HIGH FREQUENCY NEODYMIUM DRIVER |
|
THE RCF ND350 1" HF DRIVER DELIVERS VERY SMOOTH SOUND THANKS TO ITS' POLYESTER DIAPHRAGM & POLYESTER SURROUND! |
|
|
|
Item Price: $165.95 |
|
H.F.
DRIVER MODEL |
ND350 |
|
Replacement Diaphragm - RC-ND350-Dia
|
|
|
SPECIFICATIONS |
|
|
Horn
Throat Exit Diameter |
1"
/ 25.4mm |
|
Impedance |
8
Ohms |
|
Frequency
Response |
1.2kHz
- 20kHz |
|
AES Power |
50
Watts |
| Program Power | 100 Watts Program @ 1.5kHz |
|
Minimum
Cut-off Frequency |
1.2kHz |
|
Sensitivity
(SPL) |
109dB |
|
Voice
Coil Diameter |
1.75"
/ 44.4mm |
|
Flux Density |
1.8 Tesla |
| BL Factor | 7.5 T-M |
| Phase Plug | 2 Slot |
|
MATERIALS |
|
|
Diaphragm |
Polyester |
|
Voice
Coil Former |
Kapton |
| Voice Coil | Edgewound Aluminum |
| Suspension |
Polyester |
| Suspension Design | Flat |
|
Phase Plug |
Composite |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
3.3" / 85 mm |
| Hole Pattern | 2 |
|
Overall
Depth |
1.8" / 43mm |
| Mounting Type - 2 Bolt | 2 x 6 mm on a 3" Diameter |
| Net Weight | 0.8 kg. / 1.8 lbs. |
| Shipping Weight | 1.0 kg. / 2.2 lbs. |

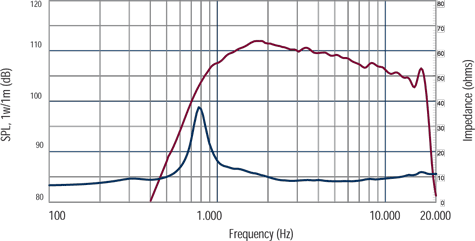

| FREQUENCY RESPONSE CURVE | |
 |
|
