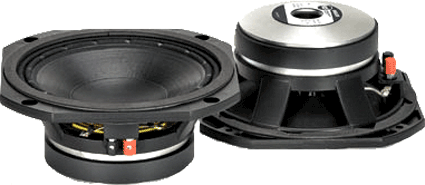

RCF MB8G200 - 8" MID-BASS SPEAKER
|
|
|
RCF MB8G200 - 8" MID-BASS SPEAKER |
|
THE RCF MB8G200 8" MID-BASS SPEAKER DELIVERS PREICES CLEAN MIDS WITH A TIGHT BASS! |
|
|
|
No Longer Available |
|
WOOFER
MODEL |
MB8G200 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
200
Watts |
| Program Power |
400
Watts |
|
Frequency
Response |
60Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
94dB |
|
Voice
Coil Diameter |
2" / 51mm |
| Max. Excursion Before Damage | 1.2" / 30mm (peak to peak) |
|
MATERIALS |
|
| Cone Material | No Pressed Pulp |
| Cone Design | Curved |
| Voice Coil Material | Copper |
| Surround Material | Polycotton |
| Surround Design | M-Roll |
| Voice Coil Former | Fiberglass |
| Magnet | Ferrite |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
9.4" / 238mm |
|
Bolt
Circle Diameter |
8.7" / 220mm |
| Front Baffle Cutout Diameter |
8"
/ 202mm |
| Rear Baffle Cutout Diameter |
7.24"
/ 184mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.3" / 6.5mm |
| Overall Depth | 3.7" / 95mm |
|
Net
Weight |
3.1 kg. / 6.8 lbs. |
|
Shipping
Weight |
3.3 kg. / 7.3 lbs. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 76 Hz |
|
Impedance
(Re) |
4.8 ohms |
| Coil Inductance (Le) | 1.4mH |
| BL Factor | 12.5 |
| Mechanical Q (Qms) | 3.7 |
| Electrical Factor (Qes) | .37 |
| Total Q (Qts) | .33 |
| Compliance Equivalent Vol. (Vas) | 11 Liters |
| Voice Coil Overhang (Xmax) | 6.0mm |
| Surface Area of Cone (Sd) | .021m2 |
| Moving Mass (Mms) | 25 grams |
| Reference Efficiency | 1.26% |

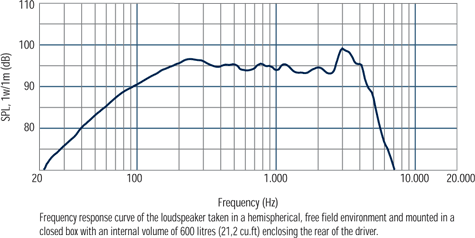

| Frequency Response | |
 |
|

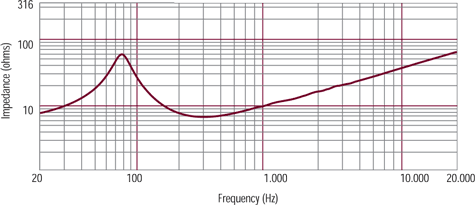

| Impedance Curve | |
 |
|

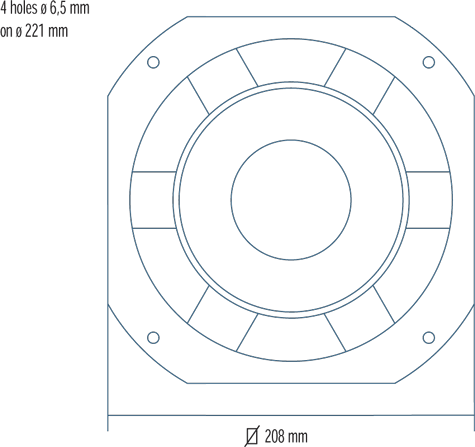

| Dimensional Drawing | |
 |
|
