THE B&C 10CXN64 10" COAXIAL SPEAKER IS FULL RANGE SPEAKER DESIGNED FOR SMALL TO MEDIUM PORTED SPEAKER CABINETS! |
|
|
|
10CXN64 |
|
Item Price: $431.25 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
10CXN64 - LIGHTWEIGHT NEO 10" COAXIAL SPEAKER |
|
THE B&C 10CXN64 10" COAXIAL SPEAKER IS FULL RANGE SPEAKER DESIGNED FOR SMALL TO MEDIUM PORTED SPEAKER CABINETS! |
|
|
|
10CXN64 |
|
Item Price: $431.25 |
|
|
SPEAKER
MODEL |
10CXN64 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
Frequency
Response |
65Hz - 18kHz |
| Dispersion | 70° |
|
LOW FREQUENCY WOOFER |
|
| Sensitivity (1W/1m) | 97dB |
|
RMS
Power Rating |
250
Watts |
| Program Power | 500 Watts |
|
Voice Coil Diameter |
2.5"
/ 64mm |
| Flux Density | 1.1 T |
| Winding Depth | .59" / 15mm |
| Magnetic Gap Depth | .35" / 9mm |
| Winding Material | Copper |
| Magnet | Neodymium |
|
HIGH FREQUENCY DRIVER |
|
| High Frequency Exit | 1.4" / 33mm |
|
Sensitivity (1W/1m) |
103dB |
| RMS Power Rating | 80 Watts |
| Program Power | 160 Watts |
| Voice Coil Diameter | 2.5" / 65mm |
| High Frequency Flux Density | 1.75 T |
| Inductance | 1.5mH |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Max. Recom. Crossover | 1.2kHz |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
10.28" / 261mm |
| Bolt Circle Diameter | 9.65" / 245mm |
| Baffle Cutout Diameter | 9.17" / 233mm |
| Depth | 5.59" / 142mm |
| Flange & Gasket Thickness | .51" / 13mm |
| Net Weight | 7.05 lbs./ 3.2 kg. |
| Shipping Weight | 9.04 lbs./ 4.1 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
68 Hz |
|
Impedance
(Re) |
5.6 ohms |
| Electrical Factor(Qes) | .33 |
| Mechanical Q (Qms) | 5.6 |
| Total Q (Qts) | .31 |
| Compliance Equiv. Vol. (Vas) | 23 Liters/.81cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.032m2 |
| Voice Coil Overhang (Xmax) | 5.5mm |
| Reference Efficiency | 2.2% |
| BL Factor | 15.8 T-M |
| Moving Mass (Mms) | 33.5 Grams |
| Coil Inductance (Le) | 1.1mH |

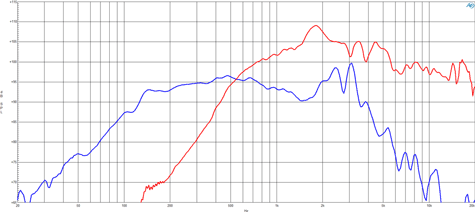

| FREQUENCY RESPONSE | |
 |
|

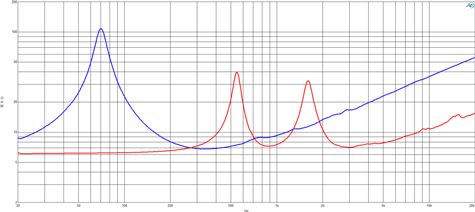

| IMPEDANCE | |
 |
|

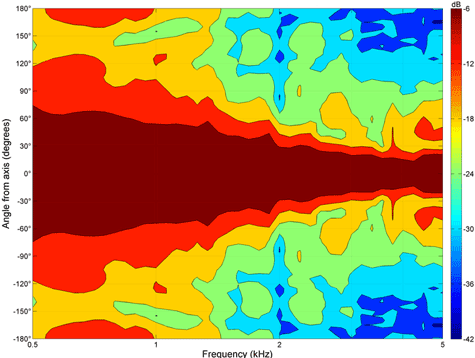

| LOW FREQUENCY DIRECTIVITY | |
 |
|

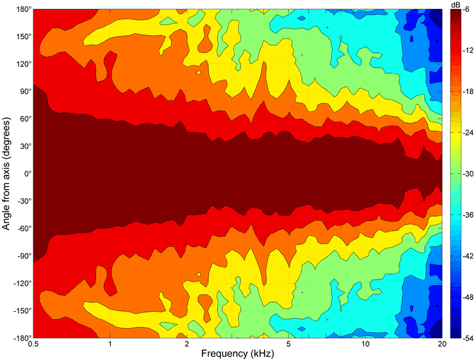

| HIGH FREQUENCY DIRECTIVITY | |
 |
|

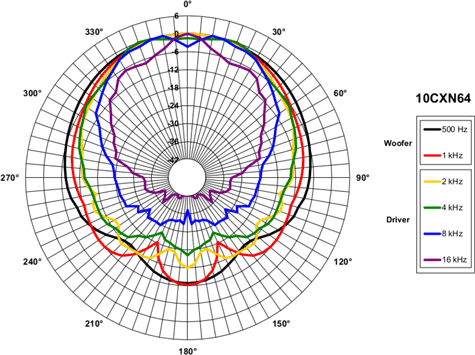

| POLAR RESPONSE | |
 |
|
