B & C PROFESSIONAL COMPONENTS |
4CXN36 - 5" NEODYMIUM COAXIAL SPEAKER |
THE B&C 4CXN36 4" COAXIAL SPEAKER IS DESIGNED FOR OPEN BAFFLE SPEAKER SYSTEMS! |
|
|
B&C 4CXN36 |
Item Price: $135.88 |
Recommeded 2-Way Crossover B&C FBCXN36 - Item Price: $69.15/Each | |
SPEAKER
MODEL |
4CXN36 |
SPECIFICATIONS |
|
Nominal
Basket Diameter |
4" |
Frequency Range |
110Hz
- 18kHz |
Dispersion Angle | 70º |
LOW FREQUENCY SPECIFICATIONS |
|
Impedance | 8 ohms |
RMS
Power Rating |
100
Watts |
Program Power | 200 Watts |
Sensitivity
(1W/1m) |
86dB |
Voice
Coil Diameter |
1.3" / 34mm |
Flux Density | .74 T |
Magnetic Gap Depth |
.24" / 6mm |
Winding Depth |
.43" / 11mm |
Winding Material | Copper |
HIGH FREQUENCY SPECIFICATIONS |
|
Impedance | 8 ohms |
RMS
Power Rating |
25 Watts |
Program Power | 50 Watts |
Sensitivity
(1W/1m) |
101dB |
Voice
Coil Diameter |
1.42" / 36mm |
Crossover Frequency | 2.0kHz |
Inductance | .14mH |
Flux Density | 1.65 T |
Winding Material | Aluminum |
Diaphragm Material | HT Polymer |
MATERIALS |
|
Basket | Steel |
Surround | Treated Cloth |
Surround Shape | 2 Roll |
Cone Shape | Exponential |
Cone Protection | Waterproof |
Spider | Single |
Former | Glass Fiber |
Demodulation Ring | Aluminum |
Magnet | Neodymium |
MOUNTING INFORMATION |
|
Overall
Diameter |
5" / 127mm |
Bolt Circle Diameter | 4.51" / 114mm |
Baffle Cutout Diameter | 4.06" / 103mm |
Depth | 3.31" / 84mm |
Flange & Gasket Thickness | .12" / 3mm |
No. Of Mounting Holes | 4 |
Net Weight | 1.21 lbs./ .55 kg. |
Shipping Weight | 1.68 lbs./ .76 kg. |
THIELE-SMALL PARAMETERS |
|
Resonant Frequency (fs) |
113Hz |
Impedance
(Re) |
5.6 ohms |
Electrical Factor(Qes) | .9 |
Mechanical Q (Qms) | 12.7 |
Total Q (Qts) | .83 |
Compliance Equiv. Vol. (Vas) | 1.5 Liters/.05cu. ft. |
Voice Coil Overhang (Xmax) | 5.0mm |
Reference Efficiency | 0.22% |
BL Factor | 5.13 T-M |
Diaphragm Mass (Mms) | 6 Grams |
Coil Inductance (Le) | 0.3mH |
Surface Area of Cone (Sd)m2 | 0.0087m2 |

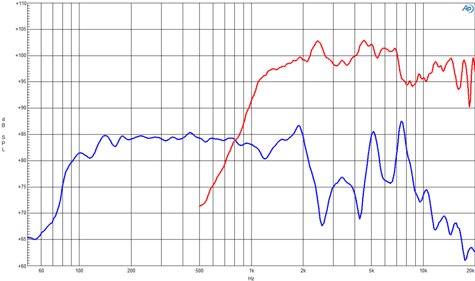

FREQUENCY RESPONSE | |
|
|

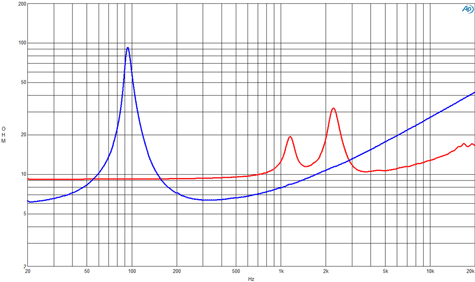

IMPEDANCE CURVE | |

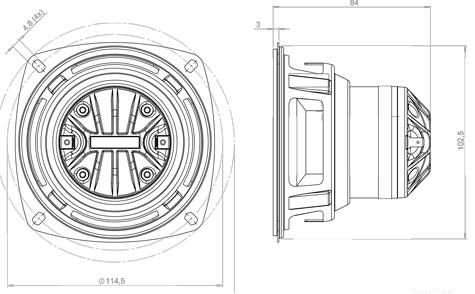

MOUNTING DIMENSIONS | |

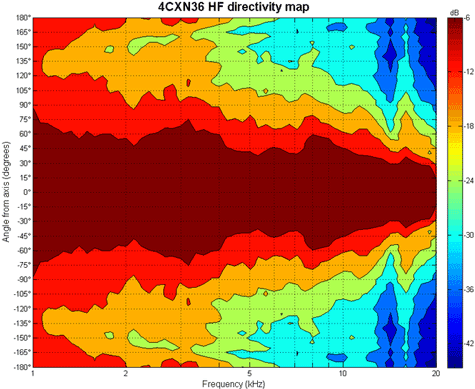

HIGH FREQUENCY DIRECTIVITY | |

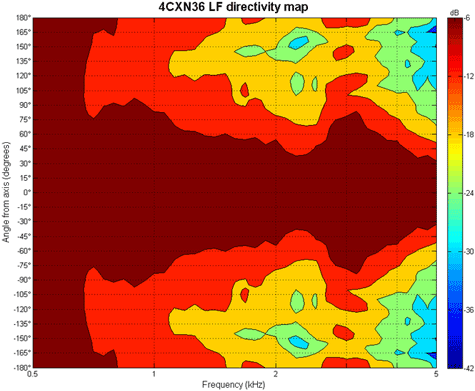

LOW FREQUENCY DIRECTIVITY | |

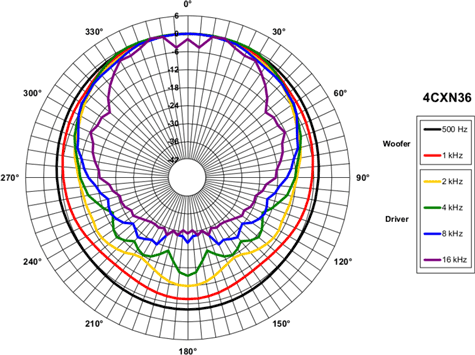

POLAR RESPONSE | |
|
