B&C 4MCX36 is a 4" lightweight neodymium coaxial speaker for open baffle speakers from 150Hz to 18kHz. B&C Speakers - B&C 4" coaxial speaker for 2-way open baffle speaker systems. B&C 4MCX36 coaxial speakers available now.

Recommeded 2-Way Crossover B&C FBCXN36 - Item Price: $69.15/Each
SPEAKER MODEL	4MCX36
SPECIFICATIONS
Nominal Basket Diameter	4" / 100mm
Frequency Range	150Hz - 18kHz
Dispersion Angle	70º
LOW FREQUENCY SPECIFICATIONS
Impedance	8 ohms
RMS Power Rating	100 Watts
Program Power	200 Watts
Sensitivity (1W/1m)	87dB
Voice Coil Diameter	1.3" / 34mm
Flux Density	.74 T
Magnetic Gap Depth	.24" / 6mm
Winding Depth	.43" / 11mm
Winding Material	Copper
HIGH FREQUENCY SPECIFICATIONS
Impedance	8 ohms
RMS Power Rating	25 Watts
Program Power	50 Watts
Sensitivity (1W/1m)	101dB
Voice Coil Diameter	1.42" / 36mm
Crossover Frequency	2.0kHz
Inductance	.14mH
Flux Density	1.65 T
Winding Material	Aluminum
Diaphragm Material	HT Polymer
MATERIALS
Basket	Steel
Surround	Treated Cloth
Surround Shape	2 Roll
Cone Shape	Exponential
Cone Protection	Waterproof
Spider	Single
Former	Glass Fiber
Demodulation Ring	Aluminum
Magnet	Neodymium
MOUNTING INFORMATION
Overall Diameter	5" / 127mm
Bolt Circle Diameter	4.51" / 114mm
Baffle Cutout Diameter	4.06" / 103mm
Depth	3.27" / 83mm
Flange & Gasket Thickness	.08" / 2mm
No. Of Mounting Holes	4
Net Weight	1.21 lbs./ .55 kg.
Shipping Weight	1.48 lbs./ .67 kg.
THIELE-SMALL PARAMETERS
Resonant Frequency (fs)	150Hz
Impedance (Re)	5.6 ohms
Electrical Factor(Qes)	1.2
Mechanical Q (Qms)	3.9
Total Q (Qts)	.91
Compliance Equiv. Vol. (Vas)	.8 Liters/.03cu. ft.
Voice Coil Overhang (Xmax)	3.0mm
Reference Efficiency	0.22%
BL Factor	5.27 T-M
Diaphragm Mass (Mms)	6.2 Grams
Coil Inductance (Le)	0.87mH
Surface Area of Cone (Sd)m2	0.0087m2

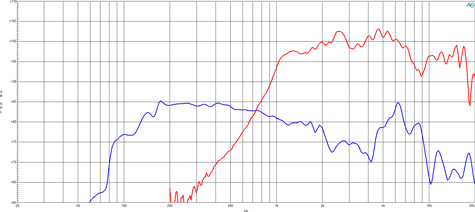

FREQUENCY RESPONSE

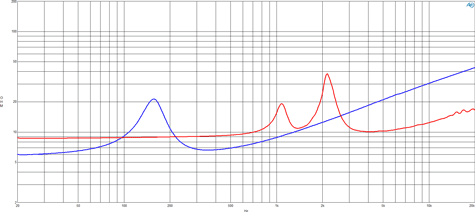

IMPEDANCE CURVE

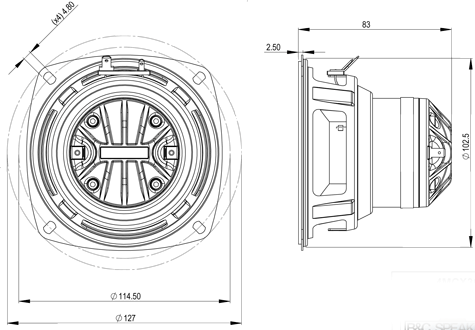

MOUNTING DIMENSIONS

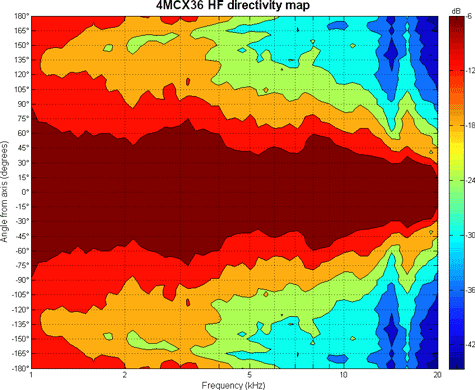

HIGH FREQUENCY DIRECTIVITY

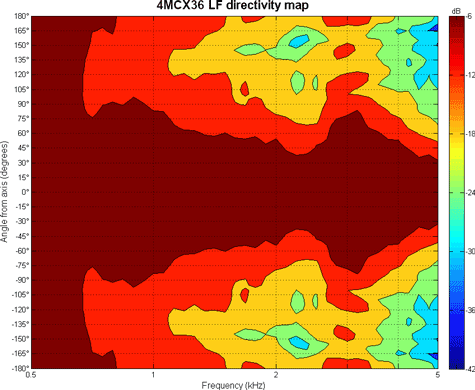

LOW FREQUENCY DIRECTIVITY

POLAR RESPONSE
