B & C  PROFESSIONAL COMPONENTS

5CXN36 - 5" NEODYMIUM COAXIAL SPEAKER

THE B&C 5CXN36 5" COAXIAL SPEAKER IS DESIGNED FOR OPEN BAFFLE SPEAKER SYSTEMS!

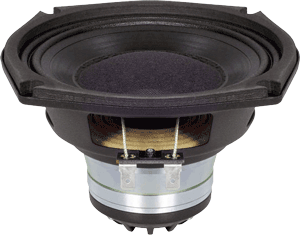

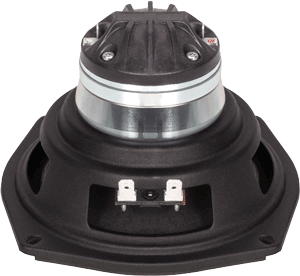

B&C 5CXN36 5 inch coaxialB&C 5CXN36 5 inch neo coaxial

B&C 5CXN36

Item Price: $138.32

Recommeded 2-Way Crossover B&C FBCXN36  - Item Price: $69.15/Each

SPEAKER MODEL

5CXN36

SPECIFICATIONS

Nominal Basket Diameter

5" / 127mm

Frequency Range 94Hz - 18kHz
Dispersion Angle 70

LOW FREQUENCY SPECIFICATIONS

Impedance 8 ohms

RMS Power Rating

100 Watts

Program Power 200 Watts

Sensitivity (1W/1m)

89dB

Voice Coil Diameter

1.3" / 34mm

Flux Density .74 T
Magnetic Gap Depth .24" / 6mm
Winding Depth .43" / 11mm
Winding Material Copper

HIGH FREQUENCY SPECIFICATIONS

Impedance 16 ohms
RMS Power Rating 25 Watts
Program Power 50 Watts
Sensitivity (1W/1m) 101dB
Voice Coil Diameter   1.4" / 36mm
Crossover Frequency 2.0kHz
Inductance .14mH
Flux Density 1.65 T
Winding Material Aluminum
Diaphragm Material HT Polymer

MATERIALS

Basket Steel
Surround Treated Cloth
Surround Shape 2 Roll
Cone Shape Exponential
Cone Protection Waterproof
Spider Single
Former Glass Fiber
Demodulation Ring Aluminum
Magnet Neodymium

MOUNTING INFORMATION

Overall Diameter 5.91" / 150mm
Bolt Circle Diameter 5.43" / 138mm
Baffle Cutout Diameter 4.84" / 123mm
Depth 3.43" / 87mm
Flange & Gasket Thickness .28" / 7mm
No. Of Mounting Holes 4
Net Weight 1.43 lbs./ .65 kg.
Shipping Weight 2.49 lbs./ 1.13 kg.

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

95Hz
Impedance (Re) 5.8 ohms
Electrical Factor(Qes) 97
Mechanical Q (Qms) 13.5
Total Q (Qts) .9
Compliance Equiv. Vol. (Vas) 4.4 Liters/.16cu. ft.
Voice Coil Overhang (Xmax) 4.1mm
Reference Efficiency 0.36%
BL Factor 5.42 T-M
Diaphragm Mass (Mms) 8.3 Grams
Coil Inductance(Le) 0.89mH
Surface Area of Cone (Sd)m2 0.0095m2

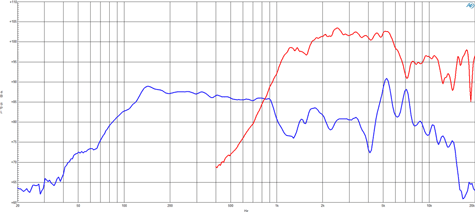

FREQUENCY RESPONSE

B&C 5CXN36 Frequency

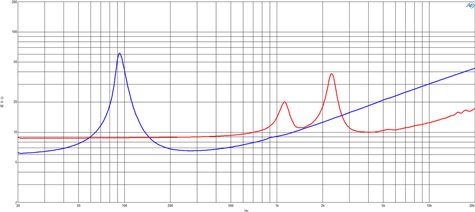

IMPEDANCE CURVE
B&C 5CXN36 Impedance

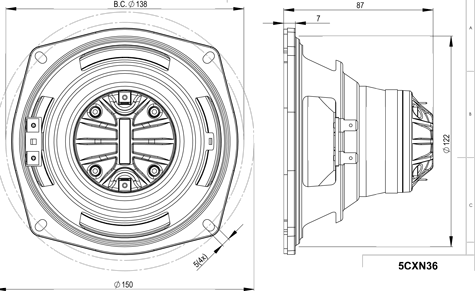

MOUNTING DIMENSIONS
B&C 5CXN36 Mounting

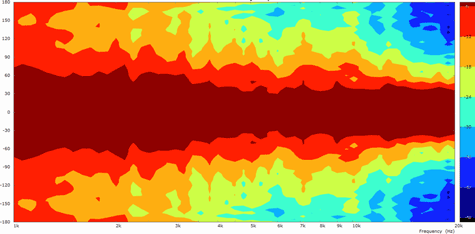

HIGH FREQUENCY DIRECTIVITY
B&C 5CXN36 HF Directivity
LOW FREQUENCY DIRECTIVITY
B&C 5CXN36 LF Directivity

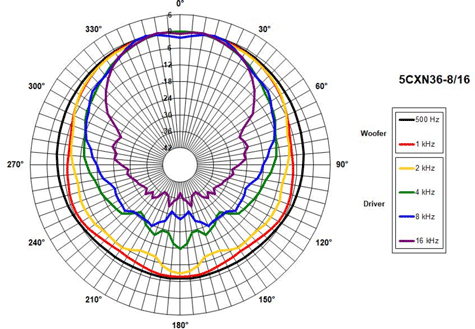

POLAR RESPONSE

B&C 5CXN36 Polar
