THE B&C DCX354 1.4" EXIT NEODYMIUM COAXIAL COMPRESSION DRIVER SOUNDS REALLY SMOOTH & BALANCED THROUGH ITS' FREQUENCY RANGE! |
|
|
|
DCX354 |
|
8 Ohms
Item Price: $508.32 |
|
|
16 Ohms
Item Price: $508.32 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

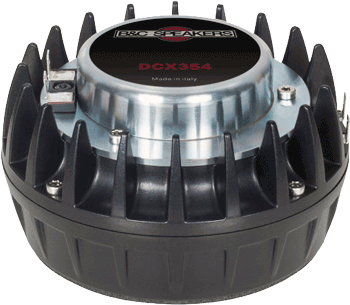

DCX354 - 1.4" COAXIAL COMPRESSION DRIVER |
|
THE B&C DCX354 1.4" EXIT NEODYMIUM COAXIAL COMPRESSION DRIVER SOUNDS REALLY SMOOTH & BALANCED THROUGH ITS' FREQUENCY RANGE! |
|
|
|
DCX354 |
|
8 Ohms
Item Price: $508.32 |
|
|
16 Ohms
Item Price: $508.32 |
|
|
SPEAKER
MODEL |
DCX354 |
|
MIDRANGE SPECIFICATIONS |
|
|
Throat Diameter |
1.4" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
90
Watts |
| Program Power | 180 Watts |
|
Frequency
Response |
400Hz
- 6kHz |
|
Sensitivity
(1W/1m) |
111.1dB |
|
Voice
Coil Diameter |
3" /
76mm |
| Inductance | 0.26mH |
| Flux Density | 1.93T |
|
HIGH FREQUENCY SPECIFICATIONS |
|
|
Throat Diameter |
1" |
|
Impedance |
8 ohms |
|
RMS
Power Rating |
50
Watts |
| Program Power |
100
Watts |
|
Frequency
Response |
5kHz - 20kHz |
|
Sensitivity
(1W/1m) |
112.8dB |
|
Voice
Coil Diameter |
2" /
51mm |
| Inductance | 0.1mH |
| Flux Density | 1.96T |
|
MIDRANGE & HIGH FREQUENCY DRIVER MATERIALS |
|
| Diaphragm | HT Polymer |
| Winding Material | Aluminum |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
5.12" / 130mm |
| Mounting Holes | (4)M6 holes on 90°- 4" Dia. |
| Depth | 2.87" / 73mm |
| Net Weight | 5.51 lbs./ 2.5 kg. |
| Shipping Weight | 5.95 lbs./ 2.7 kg. |
|
FREQUENCY RESPONSE |
|
|
|
|
|
IMPEDANCE CURVES |
|
|
|
|
|

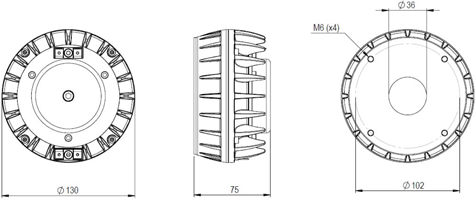

DRAWING |
|
|
|
|
