B&C FB-354 is a 2 way crossover for the DCX354 coaxial compression driver. B&C FB-354 crossover. B&C FB354 2-way crossovers available now.

B & C PROFESSIONAL COMPONENTS

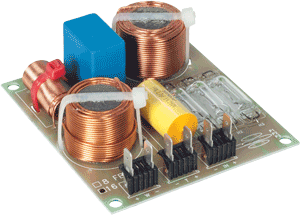

FB-354 - 2-WAY CROSSOVER

NEW B&C FB-354 IS A 2-WAY CROSSOVER FOR THE DCX-354 1.4" EXIT COAXIAL COMPRESSION DRIVER
THE FB-354 PHASE ALIGNS THE MID AND HIGH FREQUENCY DRIVERS
THIS CROSSOVER FREQUENCY BALANCES THE ENERGY BETWEEN THE 2 DIAPHRAGMS FOR MINIMUM DISTORTION AT ITS' OUTPUT OPERATING LEVELS
UTILIZES AN INDUSTRIAL FILAMENT BULB TO PREVENT DAMAGE FROM OVERPOWERING
TO BE USED WITH DCX-354 COAXIAL COMPRESSION DRIVER
AVAILABLE IN 8 & 16 OHMS

THE B&C FB-354 2-WAY CROSSOVER FOR USE WITH THE DCX354 1.4" EXIT NEODYMIUM COAXIAL COMPRESSION DRIVER
	FB-354
	8 Ohms Item Price: $104.97/Each
	16 Ohms Item Price: $104.97/Each

SPEAKER MODEL	FB-354
SPECIFICATIONS
Type	2-Way
Impedance	8 ohms
Crossover Frequency	5.6kHz
Slope – Low Frequency	18dB/octave Butterworth
Slope – High Frequency	12dB/octave Butterworth
MOUNTING INFORMATION
Overall Dimensions	3.94"x 4.33" / 100mm x 110mm
Mounting Holes	4mm holes on PCB at 100mm x 90mm
Depth	2.87" / 73mm
Net Weight	.82 lbs./ .37 kg.
Shipping Weight	.87 lbs./ .4 kg.

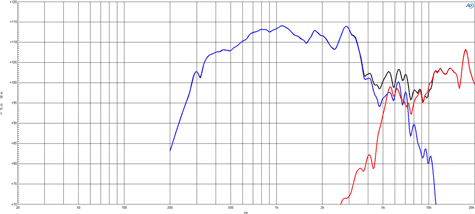

FREQUENCY RESPONSE

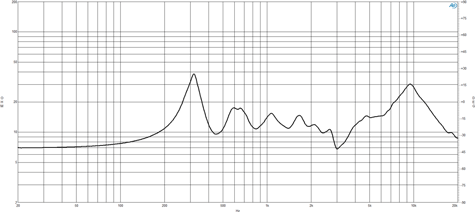

IMPEDANCE CURVES
