THE B&C ME464 1.4" LARGE FORMAT HORN WORKS WELL FOR MEDIUM TO LARGE PA SYSTEMS!

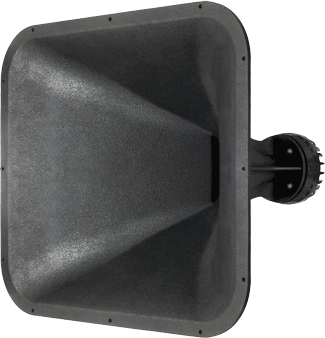

ME464 Front View

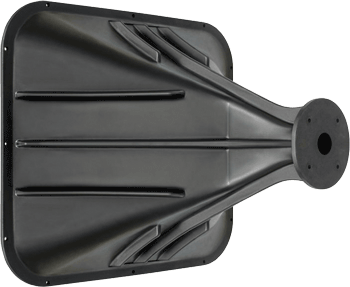

ME464 Side View
Item
Price: $716.04
|
B & C PROFESSIONAL COMPONENTS |
|
ME464 - LARGE FORMAT 1.4" HORN |
|
THE B&C ME464 1.4" LARGE FORMAT HORN WORKS WELL FOR MEDIUM TO LARGE PA SYSTEMS! |
|
|
ME464 Front View |
ME464 Side View |
|
|
|
|
HORN MODEL |
ME464 |
|
SPECIFICATIONS |
|
|
Throat
Diameter |
1.4" |
|
|
80° |
|
|
60° |
| Cutoff Frequency | 300Hz |
| Type | Bolt-on |
|
Material |
Polyurethane |
|
MOUNTING INFORMATION |
|
| Dimensions | 22.65"W x 19.88"H x 18.11"D |
| Mounting Holes | (4) M6 holes on 90°- 4" Diameter |
| Baffle Cutout Dimensions | 21.18"W x 18.5"H |
| Net Weight | 10.58 lbs. / 4.8 kg. |
|

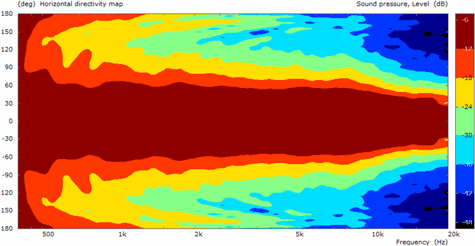

HORIZONTAL DIRECTIVITY |
|
|
|
|
|

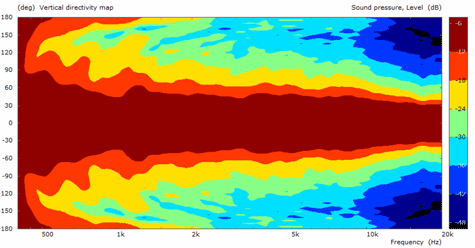

VERTICAL DIRECTIVITY |
|
|
|
|
|

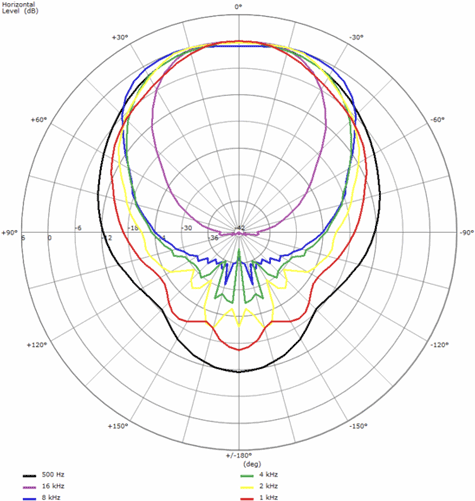

HORIZONTAL POLAR PATTERN |
|
|
|
|
|

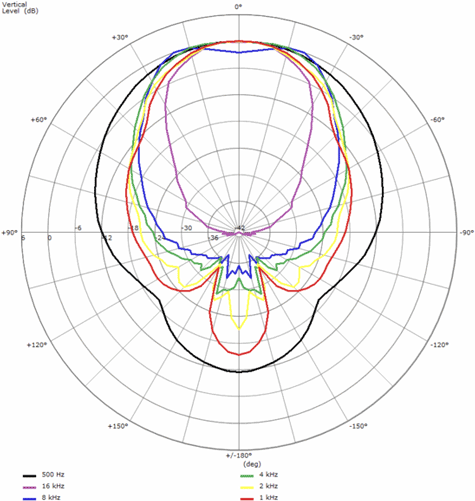

VERTICAL POLAR PATTERN |
|
|
|
|
|

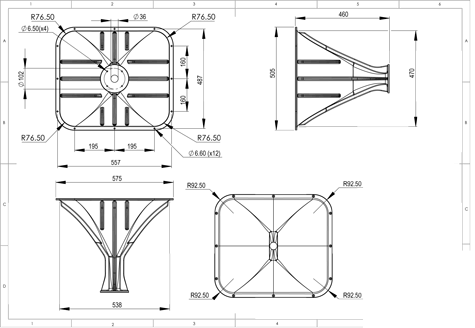

DRAWING |
|
|
|
|
