KAPPALITE COAXIAL SPEAKER - KL3010CX-8

THE EMINENCE KAPPALITE KL3010CX-8 10" COAXIAL SPEAKER WORKS GREAT IN SMALL TO MEDIUM SIZE PORTED SPEAKER CABINETS!

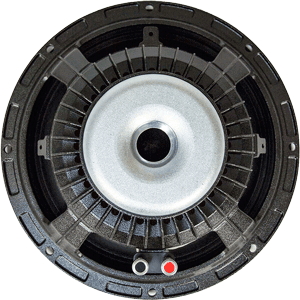

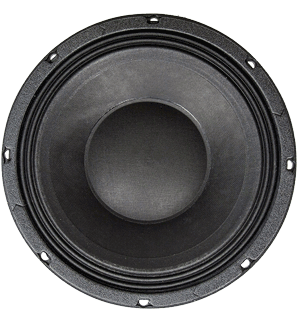

Eminence KL3010CX-8Eminence KL3010CX-8

Item Price: $239.99

Free UPS Ground Shipping in the U.S.

WOOFER MODEL KAPPALITE KL3010CX-8

Specifications

Nominal Basket Diameter 10" / 254mm
Impedance 8 Ohms
RMS Power Rating 400 Watts
Program Power Handling 800 Watts
Frequency Response* 50Hz - 20kHz
Sensitivity (1W/1m) 92dB
Voice Coil Diameter 3" / 76mm
Gap Height .365" / 9.27mm
Rec. Enclosure Volume(Vented) .55-3.0cu. ft./15.6-85 Liters.

Mounting Information

Overall Diameter 10.25" / 260.4mm
Bolt Circle Diameter 9.73" / 245.4mm
Baffle Cutout Diameter 9.12" / 247.1mm
No. Of Mounting Holes 8
Mounting Hole Diameter 0.29" / 7.37mm
Overall Depth 4.56" / 115.9mm
Magnet Weight 11 oz.
Net Weight 6.8 lbs. / 3.08 kg.
Shipping Weight 8.6 lbs. / 3.9kg.

Materials

Basket Die-Cast Aluminum
Cone Treated Paper
Voice Coil Copper
Former Fiberglass
Core Tapered Coax
Dust Cap Zurette
Surround Sealed Cloth
Magnet Neodymium

 Thiele-Small Parameters

Resonant Frequency (fs) 52 Hz
Impedance (Re) 5.71 ohms
Coil Inductance (Le) 0.62 mH
Electromagnetic Q (Qes) .3
Mechanical Q (Qms) 5.87
Total Q (Qts) .28
Compliance Equivalent Vol. (Vas) 41.4 Liters/1.46cu. ft.
Voice Coil Overhang (Xmax) 6.58mm
Diaphragm Mass (Mms) 45 Grams
BL Factor (BL) 16.8 T-M
Surface Area of Cone (Sd) .03769m2

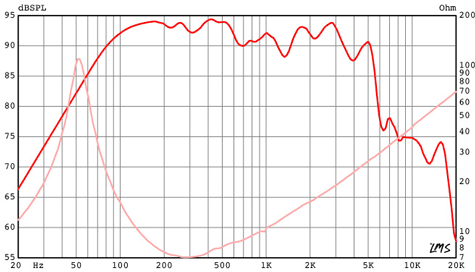

KL3010CX-8 FREQUENCY RESPONSE & IMPEDANCE CURVE

Eminence KL3010CX-8

* when using Eminence PSD2002S-8 or PSD2013S-8
