KAPPALITE COAXIAL SPEAKER - KL3012CX-8

THE EMINENCE KAPPALITE KL3012CX-8 12" COAXIAL SPEAKER WORKS GREAT IN SMALL TO MEDIUM SIZE PORTED SPEAKER CABINETS!

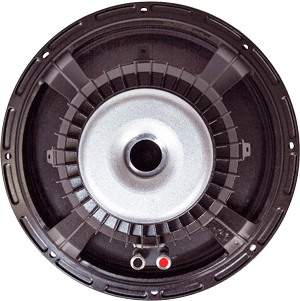

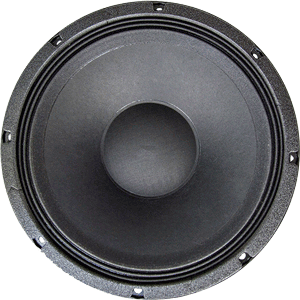

Eminence KL3012CX-8Eminence KL3012CX-8

Item Price: $259.99

Free UPS Ground Shipping in the U.S.

WOOFER MODEL KAPPALITE KL3012CX-8

Specifications

Nominal Basket Diameter 12" / 305mm
Impedance 8 Ohms
RMS Power Rating 400 Watts
Program Power Handling 800 Watts
Frequency Response* 40Hz - 20kHz
Sensitivity (1W/1m) 95.4dB
Voice Coil Diameter 3" / 76mm
Gap Height .365" / 9.27mm
Rec. Enclosure Volume(Vented) .55-3.0cu. ft./15.6-85 Liters.

Mounting Information

Overall Diameter 12.38" / 314.5mm
Bolt Circle Diameter 11.62" / 295.2mm
Baffle Cutout Diameter 11.06" / 280.9mm
No. Of Mounting Holes 8
Mounting Hole Diameter 0.28" / 7.1mm
Overall Depth 5.625" / 142.9mm
Magnet Weight 11 oz.
Net Weight 7.3 lbs. / 3.31 kg.
Shipping Weight 9.3 lbs. / 4.22kg.

Materials

Basket Die-Cast Aluminum
Cone Treated Paper
Voice Coil Copper
Former Fiberglass
Core Tapered Coax
Dust Cap Zurette
Surround Sealed Cloth
Magnet Neodymium

 Thiele-Small Parameters

Resonant Frequency (fs) 42 Hz
Impedance (Re) 5.7 ohms
Coil Inductance (Le) 0.61 mH
Electromagnetic Q (Qes) .31
Mechanical Q (Qms) 8.37
Total Q (Qts) .3
Compliance Equivalent Vol. (Vas) 111.5 Liters/3.94cu. ft.
Voice Coil Overhang (Xmax) 7.47mm
Diaphragm Mass (Mms) 54 Grams
BL Factor (BL) 16.02 T-M
Surface Area of Cone (Sd) .05454m2

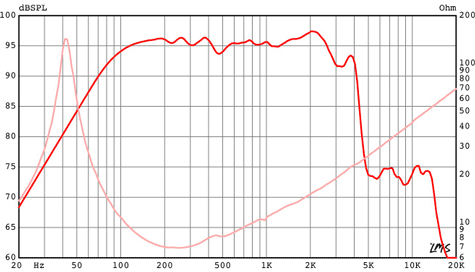

KL3012CX-8 FREQUENCY RESPONSE & IMPEDANCE CURVE

Eminence KL3012CX-8 Frequency

* when using Eminence PSD2002S-8 or PSD2013S-8
