EMINENCE EPS-15C - 15" PEDAL STEEL GUITAR SPEAKER
|
|
|
EMINENCE EPS-15C - 15" PEDAL STEEL GUITAR SPEAKER |
|
THE EMINENCE EPS-15C 15" PEDAL STEEL GUITAR SPEAKER HAS TIGHT BASS, CRISP MIDS WITH 300 WATTS RMS POWER HANDLING! |
|
|
|
No Longer Available. Replaced By Eminence Double T-15 |
| SPEAKER MODEL | EPS-15C |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
15" / 381mm |
|
Impedance |
4 ohms |
| RMS Power Rating | 300 Watts |
| Usable Frequency Response | 42Hz - 2.9kHz |
|
Voice Coil Diameter |
3" / 76.2mm |
|
Sensitivity (1W/1m) |
100.2dB |
| Magnet Weight | 11 oz. |
| Net Weight | 7.9bs. /3.58kg. |
| Shipping Weight | 10.1lbs. /4.58kg. |
|
MOUNTING INFORMATION |
|
|
|
15.32" / 389.1mm |
| Bolt Circle Diameter |
14.56 |
| Baffle Cutout Diameter | 14.03" / 356.4mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.28" / 7mm |
| Overall Depth | 6.81" / 173mm |
|
MATERIALS |
|
| Cone | Paper |
| Voice Coil | Copper |
| Former | Polyimide |
| Core | Vented |
| Magnet | Neodymium |
| Basket | Die-cast Aluminum |
| Surround | Cloth |
| Dust Cap | Aluminum |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 42Hz |
| Impedance (Re) | 3.57 ohms |
| Coil Inductance (Le) | 0.53mH |
| Electromagnetic Q (Qes) | .32 |
| Mechanical Q (Qms) | 14.41 |
| Total Q (Qts) | 0.31 |
| Compliance Equivalent Vol. (Vas) | 188.4 Liters/6.65cu. ft. |
| Voice Coil Overhang (Xmax) | 3.3mm |
| Surface Area of Cone (Sd) | .08646m2 |
| Diaphragm Mass (Mms) | 79.9 Grams |
| BL Product (BL) | 15.28 T-M |
| Peak Dia. Displacement Vol. (Vd) | 28.5cc |
|

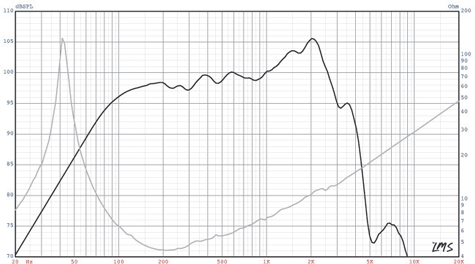

EPS-15C RESPONSE CURVE |
|
|
|
|
