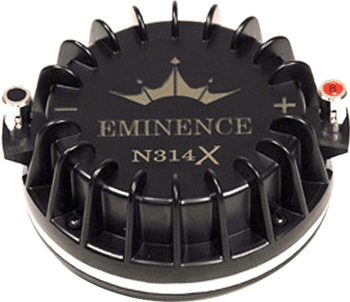

EMINENCE N314X - 1.4" CARBON FIBER HF DRIVER

NEW 1.4" EMINENCE N314X HANDLES 150 WATTS AES @ 800HZ W/ 12DB OCTAVE CROSSOVER
FEATURES A THIN PLY CARBON DIAPHRAGM THAT SOUNDS SIMILAR TO A BERYLLIUM DIAPHRAGM
CARBON FIBER DIAPHRAGM IS MORE RELIABLE THEN METAL DIAPHRAGMS UNDER HIGH SPL
EXTENDED FLAT HIGH FREQUENCY REPRODUCTION & D3 TECHNOLOGY (DAMPED DIAMETRIC TECHNOLOGY)
ULTRA CLEAN SOUND & LOW CROSSOVER POINT OF 800HZ
FOR USE IN VERY HIGH QUALITY HIGH FREQUENCY REPRODUCTION WITHOUT THE COST OF BERYLLIUM
LIGHTWEIGHT NEODYMIUM MAGNET WEIGHS ONLY 5.1 LBS.
AVAILABLE IN 8 & 16 OHMS

THE EMINENCE N314X FEATURES A THIN PLY CARBON DIAPHRAGM FOR A VERY SMOOTH SOUND WITH EXTENDED HIGH FREQUENCIES!
	N314X
	N314X-8 - 8 ohms Item Price: $349.99
	N314X-16 - 16 ohms Item Price: $349.99
H.F. DRIVER MODEL - N314X-8
Specifications
Throat Diameter	1.4" / 35.6mm
Impedance	8 & 16 ohms
D.C. Resistance	4.8 ohms
AES Power Rating	150 Watts above 800Hz
Sensitivity (1W/1m)	110.5dB SPL
Frequency Response	500Hz - 20kHz
Recommended Crossover	800Hz @ 12dB
Resonance	494Hz
Voice Coil Diameter	3.0" / 76.2mm
Magnetic Assembly Weight	11 oz.
Mounting Information
Overall Diameter	5.72" / 145.3mm
Overall Depth	2.53" / 64.3
Mounting	(4) 1/4-20 studs on 4" dia. centers
Net Weight	5.1 lb. / 2.3 kg.
Shipping Weight	5.4 lb. / 2.4 kg.
Materials
Diaphragm	TeXtreme (Thin Ply Carbon)
Voice Coil	Polyimide
Input Connectors	Metal Push-Button Terminals
Magnet	Neodymium

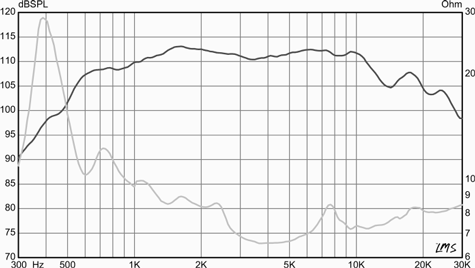

SPL vs. Frequency
