BMD-26S
Item Price: $29.99
|
P.AUDIO |
|
BMD-26S - HIGH FREQUENCY DRIVER |
|
|
BMD-26S |
|
Item Price: $29.99 |
|
H.F. DRIVER |
BMD-26S |
|
Specifications |
|
|
Throat Diameter |
1.0" |
|
Impedance |
8
ohms |
| DC Resistance | 6.2 ohms |
|
RMS
Power Rating |
30 Watts |
| Program Power | 60 Watts |
|
Sensitivity
(1W/1m) |
106dB |
|
Frequency
Response |
1.5
- 17kHz |
| Voice Coil Diameter |
1.0"
/ 25.4mm |
| Mount Type | Screw-on |
|
Materials |
|
| Diaphragm | Polyimide Film |
| Voice Coil | Aluminum |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |
| Terminal Type | Solder On |
|
Mounting Information |
|
| Overall Diameter | 3.54" / 90mm |
| Overall Depth | 2.52" / 63.9mm |
|
Net
Weight |
2.3 lb. / 1.03 kg. |
|

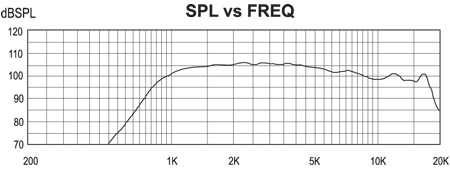

FREQUENCY RESPONSE |
|
|
|
|
|
DIMENSIONS |
|
|
|
|
