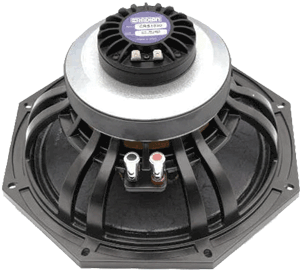

RADIAN 10CRF6430 - 10" COAXIAL PLANAR RIBBON SPEAKER
|
|
|
RADIAN 10CRF6430 - 10" COAXIAL PLANAR RIBBON SPEAKER |
|
THE RADIAN 10CRF6430 10" PLANAR RIBBON COAXIAL SPEAKER HAS A FLAT RESPONSE & VERY LOW DISTORTION! |
|
|
|
RADIAN 10CRF6430 |
|
Item Price: $359.95 |
|
|
COAXIAL
MODEL |
|
|
Specifications |
|
|
Impedance |
8 ohms / 8 ohms |
|
RMS
Power Rating |
300 Watts / 20 Watts |
|
Program Power Rating |
600 Watts / 40 Watts |
|
Sensitivity
(1W/1m) |
96dB / 102 dB SPL |
| Frequency Response | 40Hz - 30kHz |
| Recommended Crossover | 1.5kHz |
| LF Voice Coil Diameter | 2.52" |
| Nominal Dispersion | 100° |
| Voice Coil Length | 15 mm |
| Air Gap Height | 8 mm |
| Displacement Limit for Voice Coil | 14 mm |
| Recommended Enclosure Volume | .88 - 2.1 cu. ft. / 25 - 60 Liters |
|
Mounting Information |
|
|
Overall Diameter |
11.25" / 285.5mm |
| Bolt Circle Diameter | 10.35" / 263mm |
| Baffle Cutout Diameter | 9.18" / 233mm |
| Overall Depth | 5.8" / 147mm |
| Flange Thickness | .41" / 10.3mm |
| Mounting Holes | 8 |
| Net Weight | 9.25 lbs. / 4.2 kg. |
|
Materials |
|
| Woofer Cone | Paper/Kevlar |
| Basket | Cast Aluminum |
| Surround | M-Roll Polycotton |
| Connectors | Push Button |
| Voice Coil Winding | Edge Wound Ribbon |
| LF Voice Coil Wire | Copper Clad Aluminum |
| HF Diaphragm | High Temperature Polyimide |
| LF / HF Magnet | Ferrite / Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (Fs) | 65 Hz |
| Impedance (Re) | 5.3 ohms |
| Coil Inductance (Le) | 0.74 mH |
| Total Q (Qts) | .47 |
| Mechanical Q (Qms) | 3.0 |
| Electrical Factor(Qes) | .56 |
| Comp. Equivelant Vol. (Vas) | 35.3 Liters / 1.25cu. ft. |
| Voice Coil Overhang (Xmax) | 5.5mm |
| Moving Mass (Mms) | 31 Grams |
| BL Factor | 10.9T-M |
| Surface Area of Cone (Sd)m2 | .0363m2 |
|

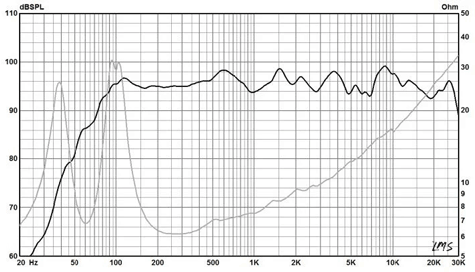

Frequency Response Graph |
|
|
|
|
|

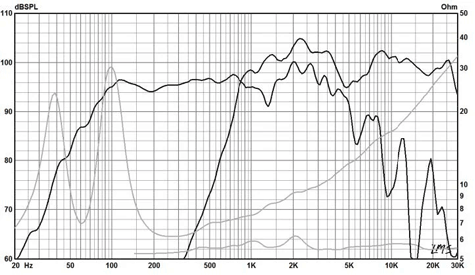

Frequency Response Graph For LF & HF Drivers |
|
|
|
|
|

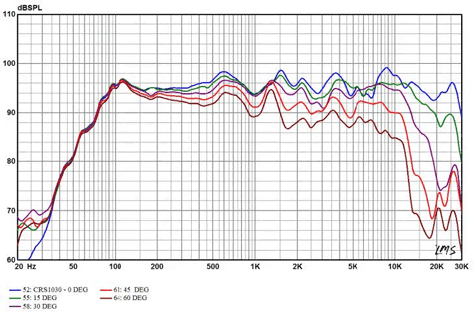

Directivity |
|
|
|
|
|

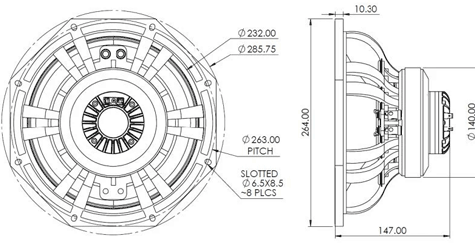

Drawing |
|
|
|
|
